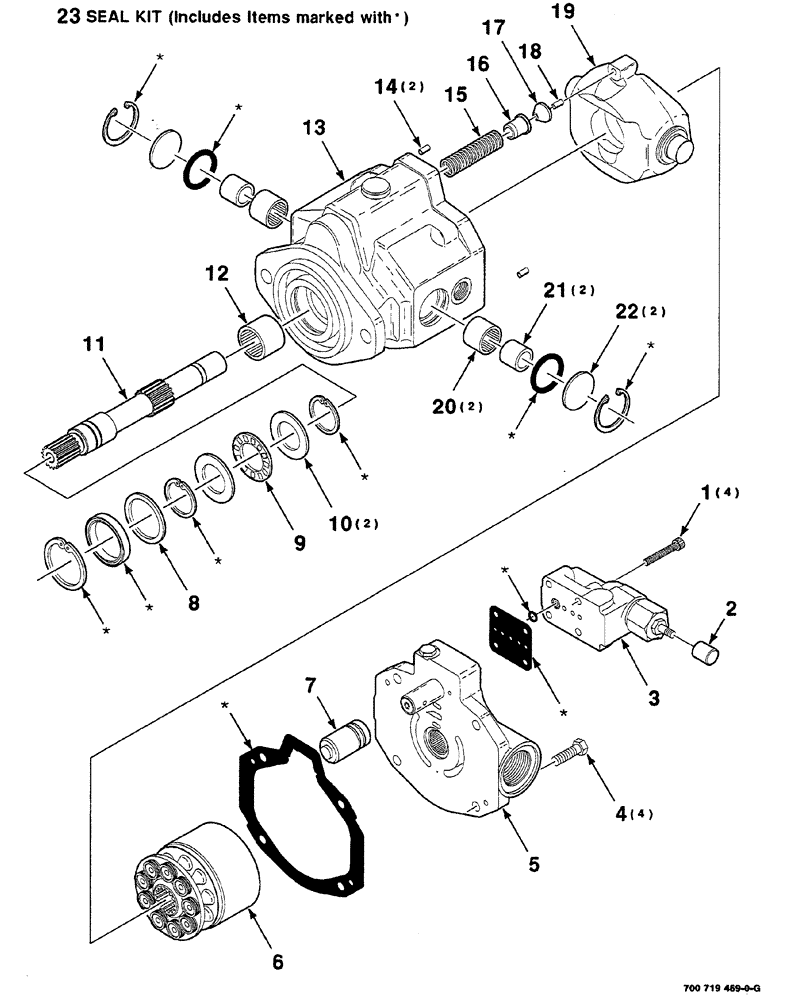

Запчасти Case IH RS561A (8-022) - PUMP ASSEMBLY, 700719469 COMPLETE (07) - HYDRAULICS

700719469

PUMP

ASSY. complete

1шт.

1

61-32520

HEX SOC SCREW,1/4"-20 x 1 1/4"

SPL

4шт.

2

50-3601T1

COVER

1шт.

3

700719775

KIT

compensator

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

5

700719772

PLATE

back

1шт.

6

700719776

KIT

ASSY. rotating

1шт.

7

700719778

PISTON

1шт.

8

95-81147

WASHER,1.53" ID x 2.06" OD x 0.11" Thk

1шт.

9

T36441

THRUST BEARING,1.127" ID x 1.74" OD x 0.0781"

thrust

1шт.

10

A52205

RACE,28.63mm ID x 44.2mm OD x 2.41mm Thk

BEARING race, thrust

2шт.

11

700719770

SHAFT

drive

1шт.

12

7037195

NEEDLE BEARING

1шт.

13

700719774

HOUSING

1шт.

14

700718773

PIN, ROLL

2шт.

15

50-2798T1

SPRING

1шт.

16

50-2799T1

COLLAR

spring

1шт.

17

50-1793T1

BUTTON

pivot

1шт.

18

38-11208

LOCK PIN,3/16" x 1/2", Slotted

1шт.

19

700719777

PLATE

cam

1шт.

20

7038128

BEARING, NEEDLE

thrust

2шт.

21

D66352

BUSHING

RACE inner

2шт.

22

D66359

COVER

trunnion

2шт.

23

700719706

SEAL KIT

KIT

1шт.
