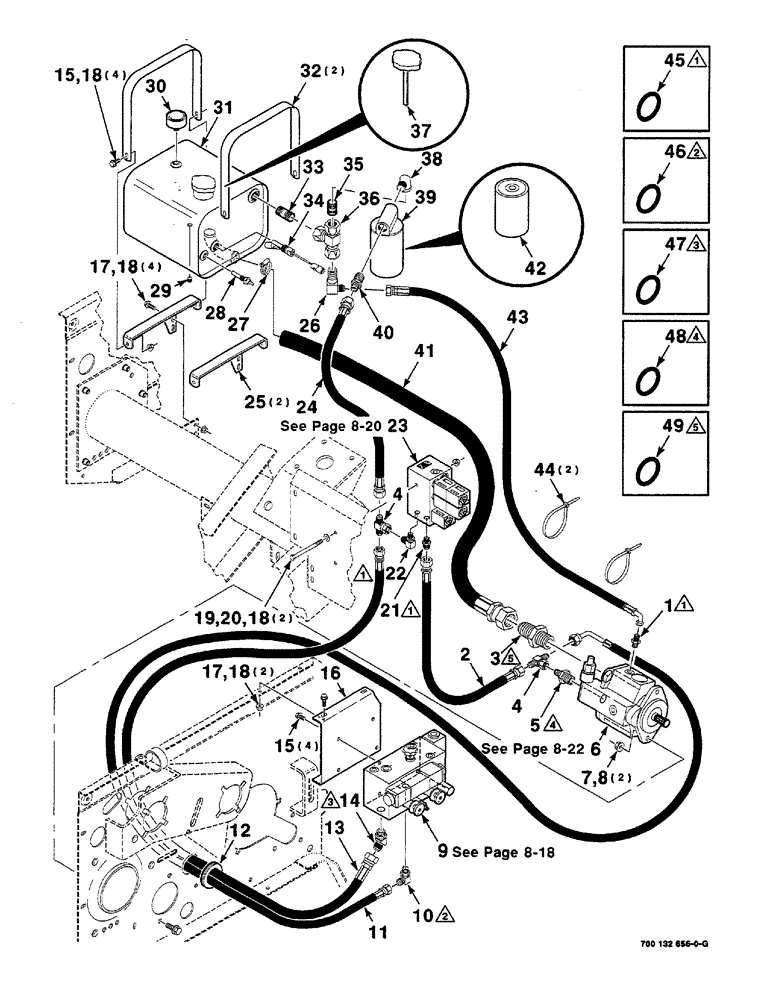

Запчасти Case IH RS561A (8-016) - HYDRAULIC ASSEMBLY (07) - HYDRAULICS

1

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 45

1шт.

2

700719099

HYDRAULIC HOSE,0.38" ID x 21.26", SAE J516, SAE J343

hydraulic

1шт.

3

700718765

FITTING

CONNECTOR straight, includes: REF. 49

1шт.

4

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

2шт.

5

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

straight, includes: REF. 48

1шт.

6

700719469

PUMP

ASSY. piston

1шт.

7

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

2шт.

8

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2"-13, hex. flange top lock, GR/G

2шт.

9

700719471

VALVE, CONTROL

ASSY. baler tension

1шт.

10

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes Ref. 46

1шт.

11

700719111

HOSE

hydraulic

1шт.

12

8027427

GROMMET

1шт.

13

700719102

HYDRAULIC HOSE,0.63" ID x 50.20", SAE 100R1, SAE J517, SAE J516, SAE J343

hydraulic

1шт.

14

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 47

1шт.

15

409-7612

BOLT,3/8"-16 x 1.09" OAL

8шт.

16

700132716

SUPPORT

valve

1шт.

17

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

6шт.

18

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8"-16, hex. flange top lock, GR/G

12шт.

19

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

3/8"-16 x 4-1/2", hex. cap screw

2шт.

20

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8", hardened, plain

2шт.

21

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

straight, includes: REF. 45

1шт.

22

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

ELBOW 90°, includes: REF. 45

1шт.

23

700719472

VALVE, CONTROL

ASSY. twine/pu/clutch

1шт.

24

700719126

HYDRAULIC HOSE,0.63" ID x 21.65", SAE100R1, SAE J517

hydraulic

1шт.

25

700132747

SUPPORT

WA, tank

2шт.

26

218-1056

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

90°

1шт.

27

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1шт.

28

700714587

SWITCH

temp.

1шт.

29

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

30

700717883

CAP

BREATHER

1шт.

31

700719473

RESERVOIR ASSY.

oil, includes: REF. 37

1шт.

32

700132750

STRAP

2шт.

33

221-215

PIPE,Nipple, 3/4" NPT x 2"

2

1шт.

34

700719488

SWITCH

SENSOR low level

1шт.

35

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE 1-3/8"

1шт.

36

700726024

TEE

swivel

1шт.

37

700719687

CAP

DIPSTICK

1шт.

38

HFI746321

ELBOW

90°, national pipe taper thread

1шт.

39

742643

FILTER

ASSY. includes: REF. 42

1шт.

40

700719622

FITTING

CONNECTOR straight

1шт.

41

700719128

HYDRAULIC HOSE,1.25" ID x 36.22", SAE 100R4, SAE J517

hydraulic

1шт.

42

201021C1

ELEMENT

filter

1шт.

43

700719125

HOSE

hydraulic

1шт.

44

306132C1

CABLE TIE,14.5" L

CABLE STRAP TIE

2шт.

45

738468

O-RING

3/8"

1шт.

46

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4"

1шт.

47

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

7/8"

1шт.

48

738484

O-RING

1"

1шт.

49

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.
