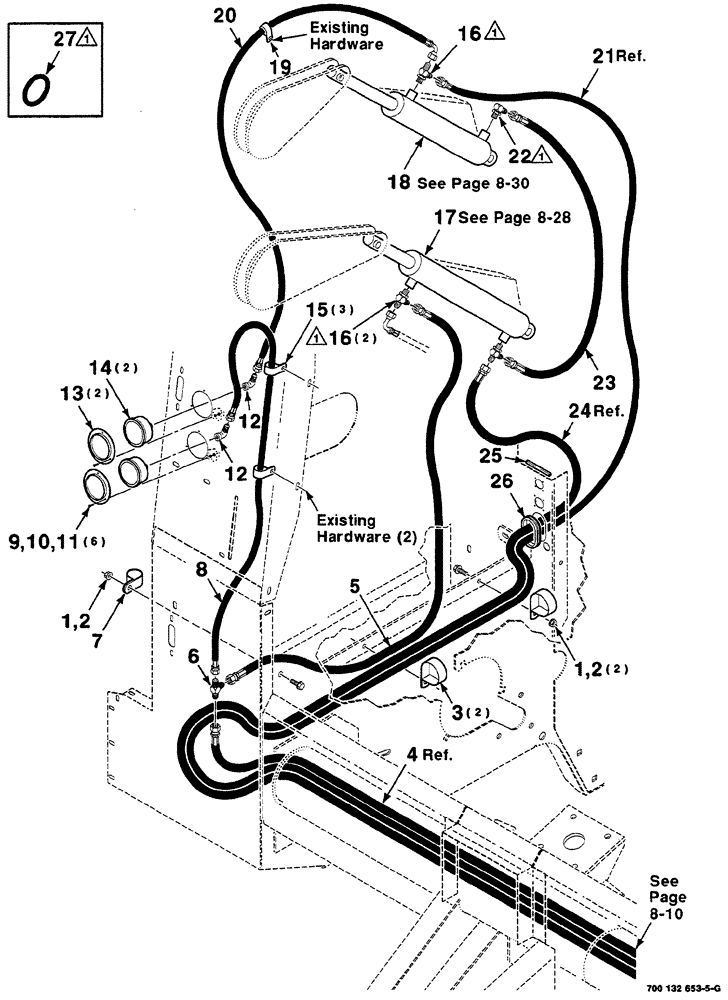

Запчасти Case IH RS561A (8-012) - HYDRAULIC CONTROL ASSEMBLY, RIGHT, BALE TENSION (07) - HYDRAULICS

1

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

3шт.

2

231-5146

FLANGE NUT,3/8"-16

3шт.

3

7041015

CLAMP

line, 2-1/2, I.D.

2шт.

4

700719100

HYDRAULIC HOSE,0.38" ID x 110.24", SAE J516, SAE J343

hydraulic

1шт.

5

700719892

HYDRAULIC HOSE,0.38" ID x 55.12"

hydraulic

1шт.

6

218-593

TEE,9/16"-18, 37 Degree

union

1шт.

7

S95446

CLAMP,1 5/16", Insul, 1/2" Bolt

line, 1-1/4", I.D.

1шт.

8

700718469

HYDRAULIC HOSE,0.25" ID x 55.12", SAE J516, SAE J343

hydraulic

1шт.

9

440-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

GR. 60 M

6шт.

10

492-11006

LOCK WASHER,#6

6шт.

11

225-14106

NUT,#6-32

6шт.

12

218-513

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, Fem NPTF

ELBOW 90°

2шт.

13

700709292

FLANGE

gauge, clamp

2шт.

14

700709290

GAUGE

pressure

2шт.

15

515-23254

CLAMP,1", Insul, 3/8" Bolt

Line

3шт.

16

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Male, Includes: Ref. 27

3шт.

17

700719621

CYLINDER

ASSY. hydraulic

1шт.

18

700714707

CYLINDER

ASSY. hydraulic

1шт.

19

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line

1шт.

20

700719891

HOSE

hydraulic

1шт.

21

700719094

HYDRAULIC HOSE,0.25" ID x 161.42", SAE J516, SAE J343

hydraulic

1шт.

22

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

(Includes Ref 27)

1шт.

23

700714806

HYDRAULIC HOSE,0.25" ID x 39.37", SAE J517, SAE J516, SAE J343

hydraulic

1шт.

24

700714809

HOSE

hydraulic

1шт.

25

700153662

GROMMET

1шт.

26

8027427

GROMMET

1шт.

27

738468

O-RING

9/16"

1шт.
