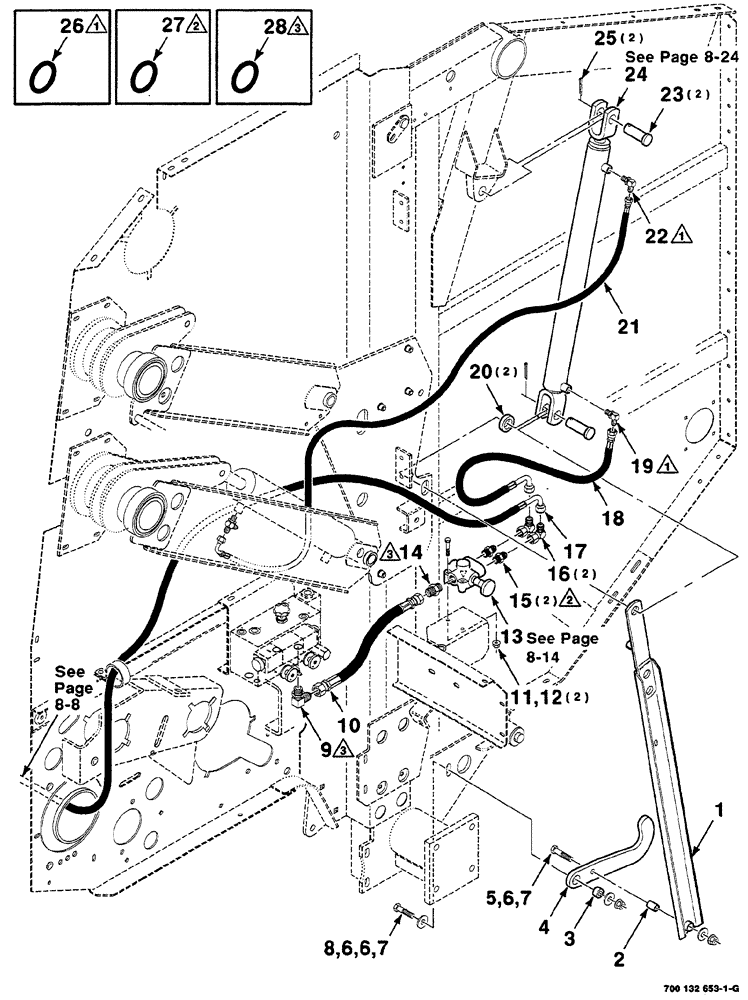

Запчасти Case IH RS561A (8-006) - HYDRAULIC ASSEMBLY, TAILGATE, LEFT, WITHOUT MESH WRAP (07) - HYDRAULICS

1

700132717

LINK

WA

1шт.

2

700132513

BUSHING

1шт.

3

700132512

BUSHING

1шт.

4

700132511

LATCH

1шт.

5

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

6

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2", hardened, plain

3шт.

7

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2"-13, hex. flange top lock, GR/G

2шт.

8

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

9

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 28

1шт.

10

700719101

HOSE,15.88 mm ID x 460.00 mm, SAEJ517 100R2

1шт.

11

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

12

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16"-18, hex. flange top lock, GR/G

2шт.

13

700717995

VALVE

ASSY. shutoff

1шт.

14

51200289

FITTING

CONNECTOR straight, includes: REF. 28

1шт.

15

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Straight, Incl. Ref 27

2шт.

16

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

2шт.

17

700716086

HOSE

hydraulic

1шт.

18

700716081

HOSE

hydraulic

1шт.

19

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

ELBOW 90°, includes: REF. 26

1шт.

20

700120629

SPACER

2шт.

21

700716085

HOSE

hydraulic

1шт.

22

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 26

1шт.

23

700710292

PIN

clevis, special

2шт.

24

700716066

CYLINDER

ASSY. hydraulic

1шт.

25

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

26

738468

O-RING

3/8"

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4"

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

7/8"

1шт.
