(4-030) - ELECTRICAL HARNESS SERVICE PARTS, CONTINUED

Запчасти Case IH RS561A (4-030) - ELECTRICAL HARNESS SERVICE PARTS,CONTINUED (06) - ELECTRICAL

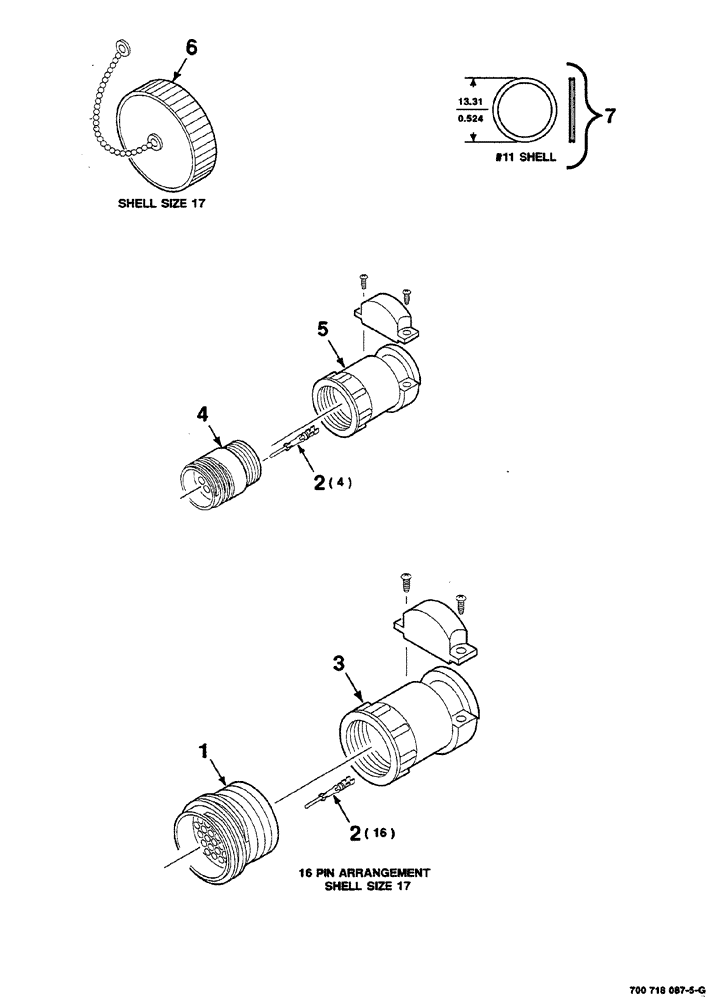

Схема запчастей Case IH RS561A - (4-030) - ELECTRICAL HARNESS SERVICE PARTS, CONTINUED (06) - ELECTRICAL
7
3
4
2
1
6
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700708754

CONTAINER

RECEPTACLE square flange, male, 16 pin arrangement, with seal

1шт.

2

700713559

PIN

bronze, type 3

1шт.

3

225153C1

CONTACT HOUSING

CLAMP cable, shell size 17

1шт.

4

700709234

CONNECTION,ELECTRIC

PLUG standard sex

1шт.

5

1994741C1

CONTACT HOUSING

CLAMP cable, shell size 11

1шт.

6

700719614

CAP

sealing, shell size 17

1шт.

7

700712102

SEAL

peripheral

1шт.
