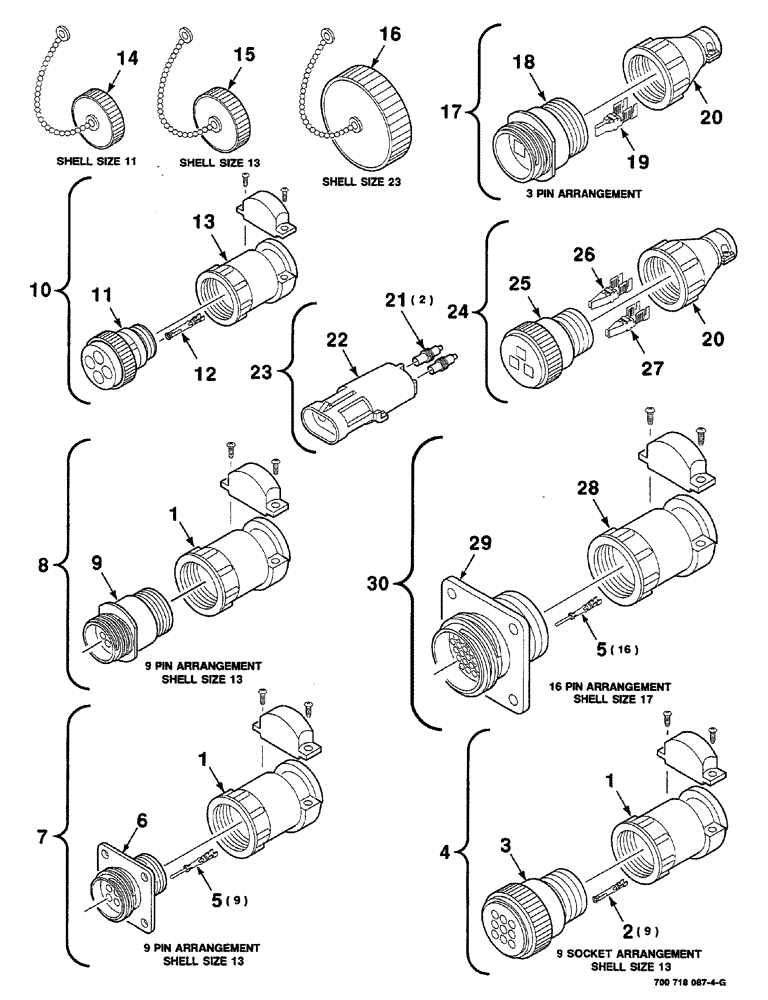

Запчасти Case IH RS561A (4-028) - ELECTRICAL HARNESS SERVICE PARTS, CONTINUED (06) - ELECTRICAL

1

700715828

CLAMP

cable, shell size 13

1шт.

2

700713574

SOCKET

female, 18-14 gauge

1шт.

3

60-6127T2

CONNECTION

plug, female, 9 socket arrangement

1шт.

4

700718988

KIT

harness repair, female, 9 socket, includes: REF. 1, 2 & 3

1шт.

5

700713559

PIN

bronze, type 3

1шт.

6

700707758

CONTAINER

RECEPTACLE square flange, male, 9 pin arrangement, with seal

1шт.

7

700718987

KIT

harness repair, male, 9 pin, includes: REF. 1, 5 & 6

1шт.

8

700718989

KIT

harness repair, male, 9 pin, includes: REF. 1 & 9

1шт.

9

700715850

CONNECTION,ELECTRIC

RECEPTACLE standard sex, shell size 13, with seal

1шт.

10

700712132

REPAIR KIT

receptacle repair, includes: REF. 11, 12 & 13

1шт.

11

700709232

POWER SOCKET

standard sex

1шт.

12

700718607

TERMINAL

SOCKET type 3, female, 14-18 gauge

1шт.

13

1994741C1

CONTACT HOUSING

CLAMP cable, shell size 11

1шт.

14

700713526

CAP

sealing, shell size 11

1шт.

15

700707016

CAP

sealing, shell size 13

1шт.

16

700712983

CAP

sealing, shell size 23

1шт.

17

700718994

KIT

harness repair, male, 3 pin, includes: REF. 18, 19 & 20

1шт.

18

700710659

CONTACT HOUSING

RECEPTACLE standard sex, free hanging, 3 pin arrangement

1шт.

19

700710621

CONTACT HOUSING,Male, Pole

male, type XII, 16-12 AWG

1шт.

20

225153C1

CONTACT HOUSING

CLAMP cable, shell size 17

1шт.

21

700714829

PLUG

1шт.

22

700706399

ELEC CONNECTOR,14 - 20 SAE

shroud, 2 pin, male

1шт.

23

225127C1

PLUG

KIT harness, seal, 2 way plug, includes: REF. 21 & 22

1шт.

24

1714005

PACKAGE,SERVICE

KIT harness repair, female end, includes: REF. 20, 25, 26 & 27

1шт.

25

225165C1

ELEC CONNECTOR

3 socket, female

1шт.

26

700710620

TERMINAL

SOCKET female, type XII, 12-16 gauge

1шт.

27

700709706

TERMINAL

female, type XII, 8-10 gauge

1шт.

28

225141C1

MULTIPOLE CONNECTOR

CLAMP cable, shell size 17

1шт.

29

700712676

CONNECTION,ELECTRIC

RECEPTACLE square flange, male, 16 pin arrangement, with seal

1шт.

30

700718990

KIT

harness repair, male, 16 pin, includes: REF. 5, 28 & 29

1шт.
