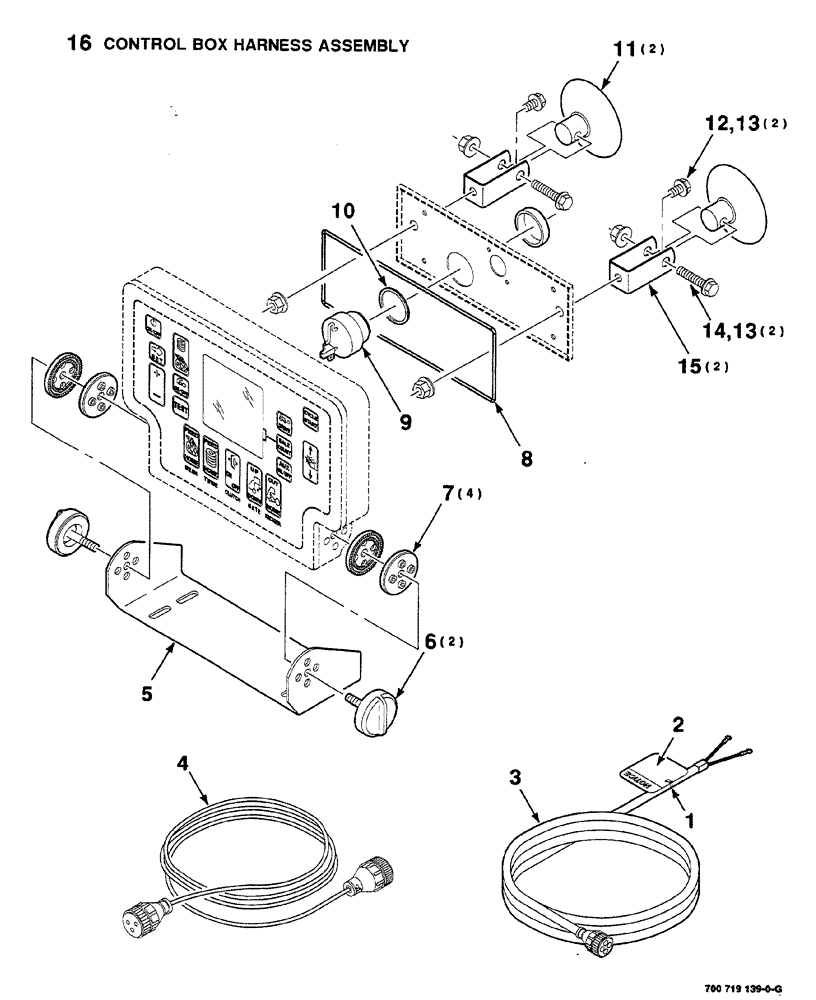

Запчасти Case IH RS561A (4-020) - ELECTRICAL CONTROL BOX ASSEMBLY, 700719139 COMPLETE (06) - ELECTRICAL

700719139

CONTROL

ASSY. box, complete

1шт.

1

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

2

700707683

DECAL

notice, 12 volt

1шт.

3

700717795

HARNESS

CABLE ASSY.

1шт.

4

700718048

CABLE ASSY.

for imported tractors only

1шт.

5

700726105

SUPPORT

1шт.

6

700726107

KNOB

ASSY.

2шт.

7

700726106

CONTROL

CLUTCH

4шт.

8

700726110

GASKET

1шт.

9

700726111

ALARM

BEEPER ASSY. includes: nut

1шт.

10

700726112

GASKET

1шт.

11

700714802

CUP

suction

2шт.

12

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

13

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16"-18, hex. flange top lock, GR/G

4шт.

14

409-7524

BOLT,Hex Flg, 5/16" - 18 x 1 1/2", Spcl

5/16"-18 x 1-1/2", hex. flange serrated

2шт.

15

700726108

SUPPORT

2шт.

16

700718828

HARNESS

ASSY. control box

1шт.
