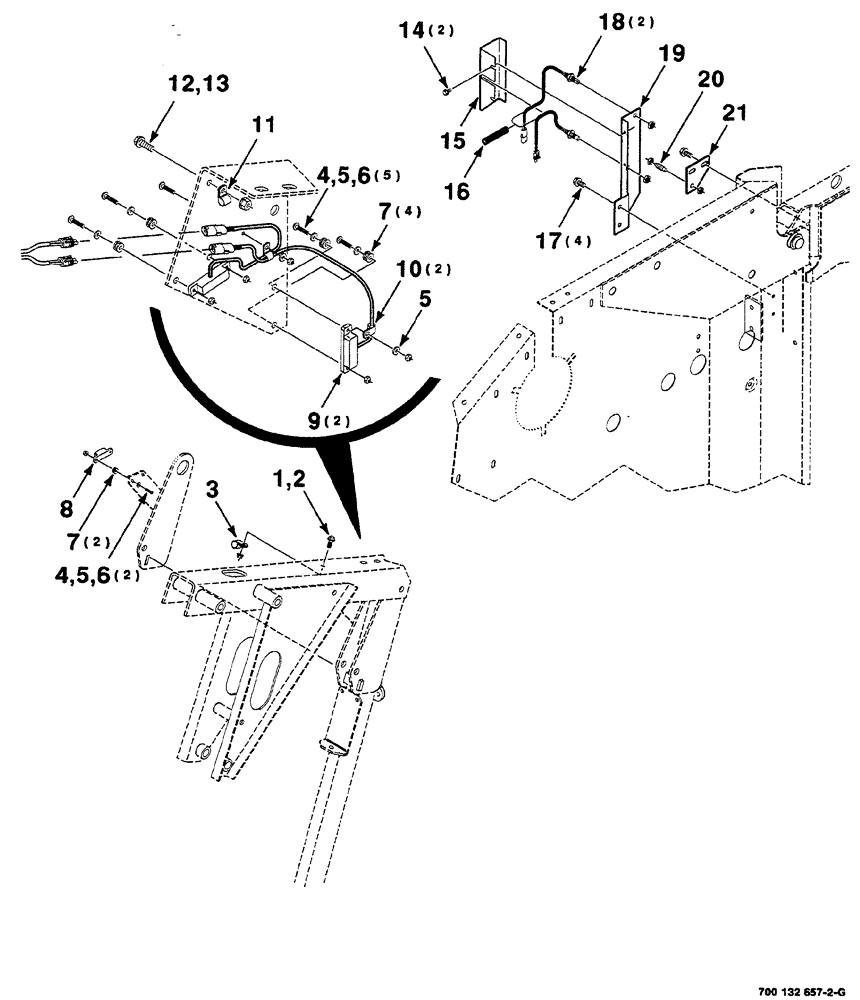

Запчасти Case IH RS561A (4-014) - ELECTRICAL ASSEMBLY, KICKER (06) - ELECTRICAL

1

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8"-16, hex. flange top lock, GR/G

1шт.

3

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Line

1шт.

4

700710188

SCREW

#6-32 x 3/4", cross recess pan head machine, stainless

7шт.

5

700710187

WASHER

#6 WPW, stainless

8шт.

6

700710189

LOCK NUT

#6-32, light hex. stop, stainless

7шт.

7

700710199

GROMMET

6шт.

8

700709996

SWITCH

actuator

1шт.

9

700710208

ROTARY SWITCH

N.O.

2шт.

10

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

Line

2шт.

11

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

12

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4"-20 x 3/4", hex. washer head machine

1шт.

13

1703354

NUT

1/4"-20, hex. flange top lock, GR/G

1шт.

14

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

15

700150915

SHIELD

1шт.

16

702400102

CONDUIT

split

1шт.

17

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8"-16 x 3/4", hex. washer head thread cutting tapping

4шт.

18

700119161

SWITCH

ASSY. NO

2шт.

19

700150916

MOUNTING PARTS

switch

1шт.

20

700710211

ACTUATOR

ACTUATOR

1шт.

21

700135943

MOUNTING PARTS

actuator

1шт.
