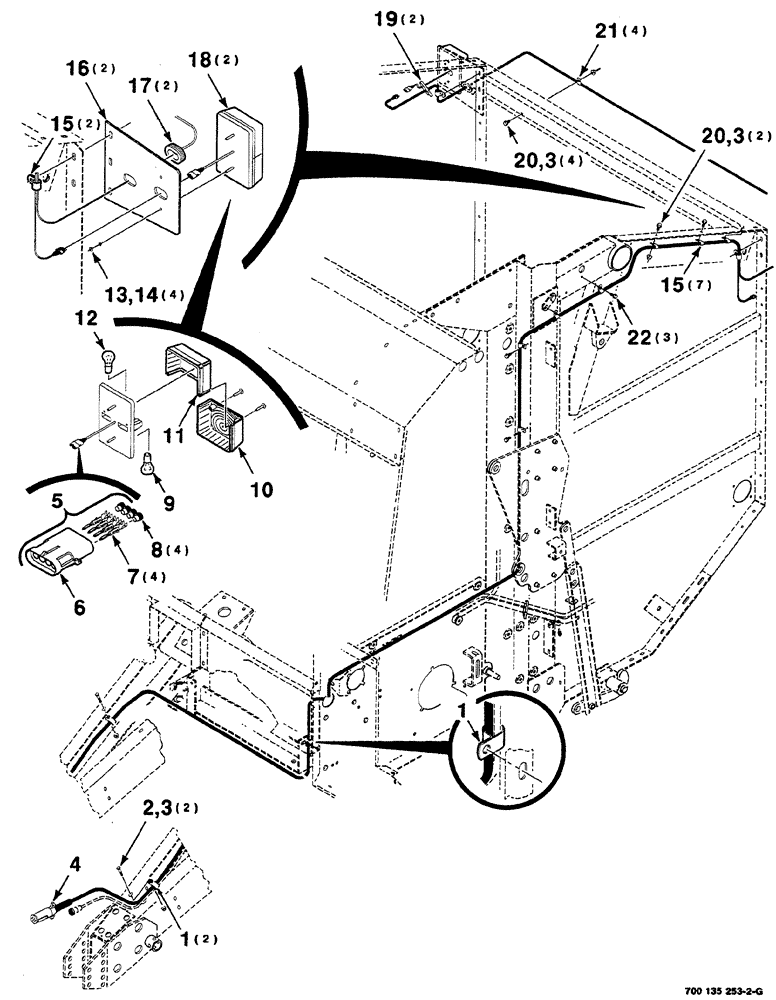

Запчасти Case IH RS561A (4-010) - ELECTRICAL ASSEMBLY, TAILLIGHTS (06) - ELECTRICAL

1

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

3шт.

2

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8"-16, hex. flange top lock, GR/G

8шт.

4

700718047

HARNESS

tail light

1шт.

5

700709354

REPAIR KIT

KIT repair, harness, includes: REF. 6, 7 & 8

1шт.

6

700708964

WIRE CONNECTOR

shroud, 4 pin, male

1шт.

7

700706401

TERMINAL

PIN male, 18-20 gauge

4шт.

8

700706400

PLUG

18-20 gauge

4шт.

9

700717381

BULB

E 12V

1шт.

10

700717386

LENS

red

1шт.

11

700717417

LENS

amber

1шт.

12

700717385

BULB

12V

1шт.

13

492-11010

LOCK WASHER,#10

4шт.

14

825-1405

NUT,M5, Cl 8

4шт.

15

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

9шт.

16

700135935

SUPPORT

BRACKET light

2шт.

17

700707095

GROMMET

2шт.

18

700716461

TAIL LAMP

combination

2шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP TIE

2шт.

20

409-7612

BOLT,3/8"-16 x 1.09" OAL

6шт.

21

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

4шт.

22

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8"-16 x 3/4", hex. washer head thread cutting tapping

3шт.
