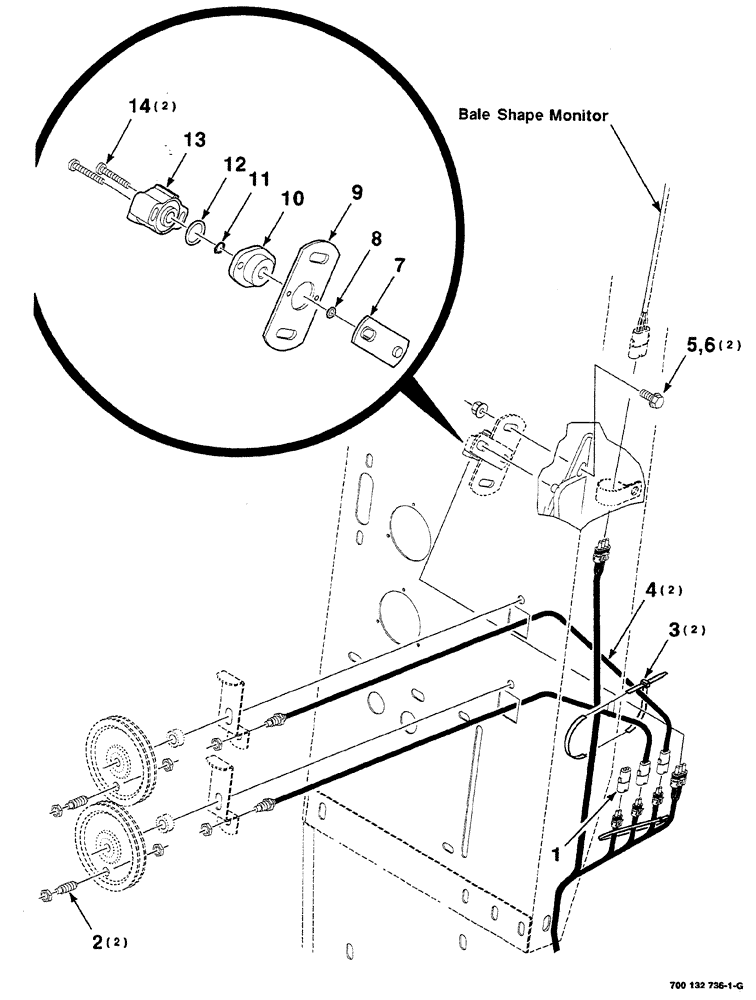

Запчасти Case IH RS561A (4-006) - ELECTRICAL ASSEMBLY, TWINE RUN AND BALE SWITCH (06) - ELECTRICAL

1

225127C1

PLUG

PLUG 2 way

1шт.

2

700710211

ACTUATOR

ACTUATOR

2шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP TIE

2шт.

4

700119161

SWITCH

SENSOR "A"

2шт.

5

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

6

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16"-18, hex. flange top lock, GR/G

2шт.

7

700132672

LEVER

WA

1шт.

8

731489

O-RING

1шт.

9

700132673

PLATE

1шт.

10

700719116

BUSHING,8.872 mm ID x 25.5 mm OD x 15 mm

1шт.

11

700719115

SNAP RING

retaining, external

1шт.

12

700717503

O-RING

1шт.

13

700719117

INDICATOR

position

1шт.

14

37152155

PIN

#10-24 x 1-1/4", cross recess pan head machine screw, GR, 60M

2шт.
