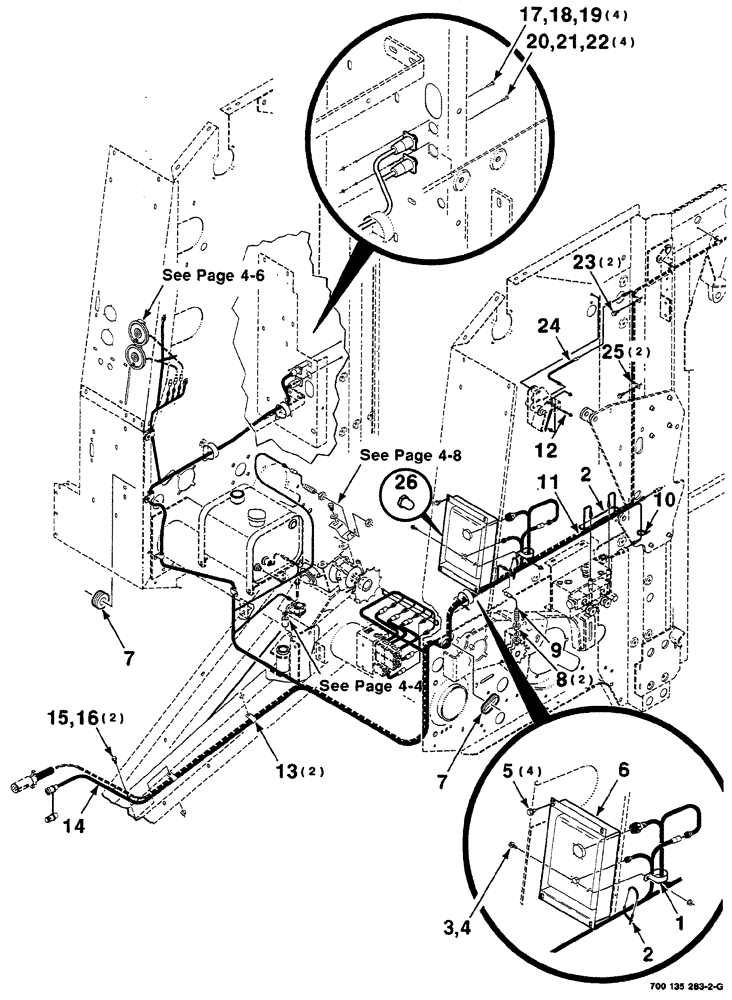

Запчасти Case IH RS561A (4-002) - ELECTRICAL ASSEMBLY, MAIN HARNESS (06) - ELECTRICAL

1

S95446

CLAMP,1 5/16", Insul, 1/2" Bolt

1шт.

2

529070

CABLE TIE,368.3mm L

TIE

2шт.

3

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

4

232-5315

FLANGE NUT,Flg, 5/16"-18

GR/G

1шт.

5

7883366

SCREW,Hex Washer, 3/8" - 16 x 1/2"

3/8"-16 x 1/2", hex. washer head machine

4шт.

6

700719118

CONTROL

ASSY. implement

1шт.

7

8027427

GROMMET

2шт.

8

425-1512

JAM NUT,Jam, 3/4"-10, G5

3/4"-16, HJN, GR2

2шт.

9

700706398

SENSOR

PTO

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP TIE

1шт.

11

700718826

HARNESS

wire

1шт.

12

700710211

ACTUATOR

ACTUATOR

1шт.

13

515-23254

CLAMP,1", Insul, 3/8" Bolt

2шт.

14

700718867

HARNESS

wire

1шт.

15

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

16

232-5316

FLANGE NUT,Flg, 3/8"-16

GR/G

2шт.

17

182-5

SCREW,Sl Pan Hd, #4 - 40 x 3/8"

GR60M

4шт.

18

492-11004

LOCK WASHER,#4

4шт.

19

225-14104

NUT,#4-40

4шт.

20

440-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

GR60M

4шт.

21

492-11006

LOCK WASHER,#6

4шт.

22

225-14106

NUT,#6-32

4шт.

23

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

2шт.

24

700119161

SWITCH

SENSOR "A"

1шт.

25

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

2шт.

26

700716260

COVER

fuse

1шт.
