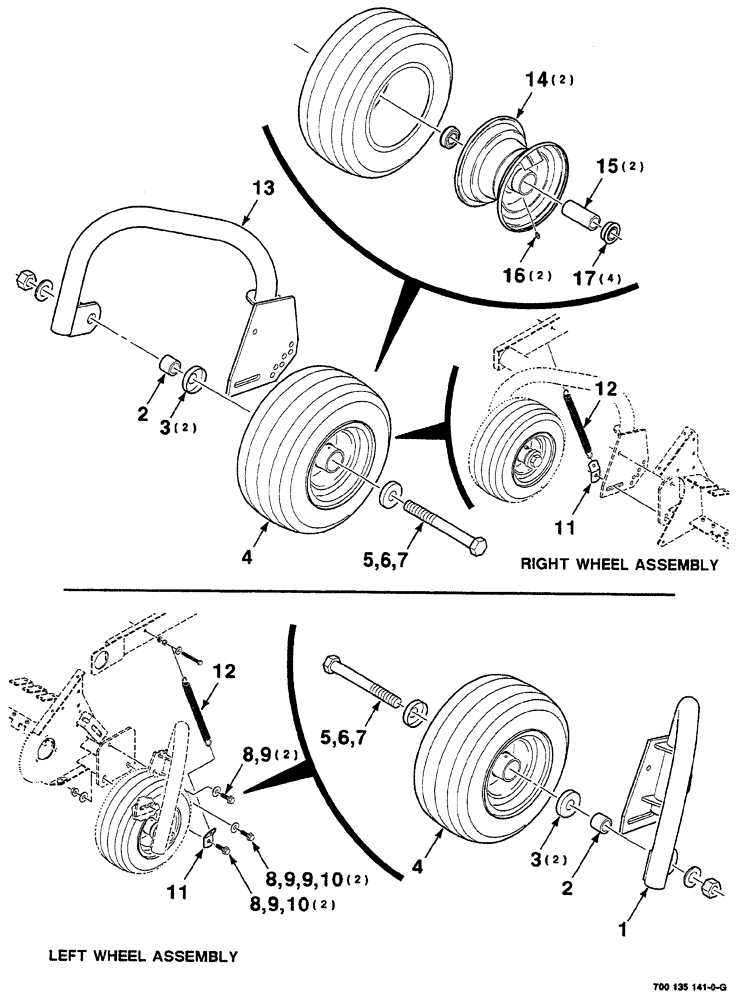

Запчасти Case IH RS561A (3-010) - PICKUP GAUGE WHEEL AND SUPPORT ASSEMBLIES Pickup

1

700147500

STRUT

WA, left

1шт.

2

6651772

SPACER

2шт.

3

700127756

RING

grass

4шт.

4

700716366

WHEEL

ASSY. includes: REF. 14, 15, 16 & 17

2шт.

5

413-16128

BOLT,Hex, 1" - 8 x 8", Gr 5

1-8" x 8", hex.

2шт.

6

705574

WASHER,1 1/8" x 2" x .156", HDN

2шт.

7

232-41116

LOCK NUT,1"-8, GC

2шт.

8

8701237

BOLT

1/2"-13 x 1-1/2", hex. flange screw, GR8

6шт.

9

700711557

WASHER

1/2" hardened, wide, plain

8шт.

10

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2"-13, hex. flange top lock, GR/G

4шт.

11

700150878

SPRING

tab

2шт.

12

700708977

SPRING

extension

2шт.

13

700147501

STRUT

WA, right

1шт.

14

700716367

WHEEL

2шт.

15

700714562

SPACER

2шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

17

700714371

FLANGED BEARING

flange

4шт.
