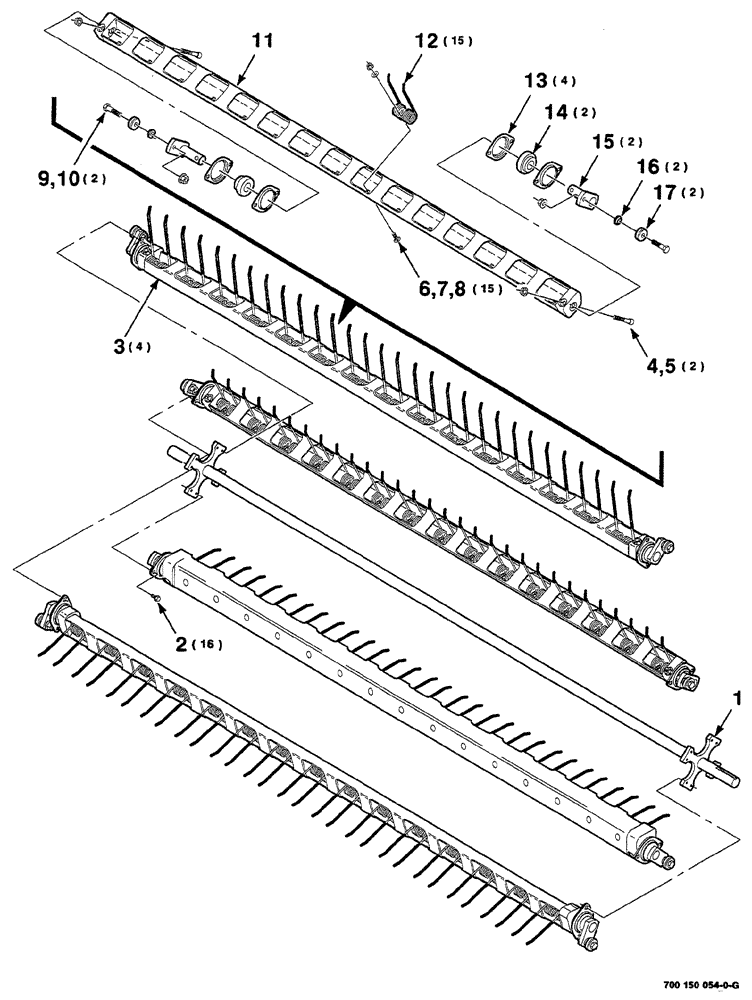

Запчасти Case IH RS561A (3-006) - PICKUP ROTOR ASSEMBLY Pickup

1

700150061

ROTOR

WA

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

16шт.

3

700150055

BAR

TINE ASSY. includes: REF. 4 -17

4шт.

4

61-736

HEX SOC SCREW,7/16"-14 x 2 1/4"

7/16"-14 x 2-1/4", hex. socket head cap, SPL

2шт.

5

704452

SPRING

7/16"-14, hex. flange top lock, GR/G

2шт.

6

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

15шт.

7

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8", hardened, plain

15шт.

8

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8"-16, hex. flange top lock, GR/G

15шт.

9

428-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

1/2"-13 x 2", hex. cap, GR8

2шт.

10

700707867

NUT

1/2"-20, hex. flange top lock, GR/G

2шт.

11

700150056

CHANNEL

WA, tine

1шт.

12

700714826

TORSION SPRING,Coiled, 2 Prong, 177mm L

double (one bend - as equipped)

15шт.

12

700716132

TINE

double (two bends - as equipped)

15шт.

13

581469R1

FLANGE,Bearing

4шт.

14

700708095

SPHERICAL BEARING

2шт.

15

700135875

CRANK

WA

2шт.

16

700137750

SPACER

2шт.

17

700720050

CAM FOLLOWER

cam follower

2шт.
