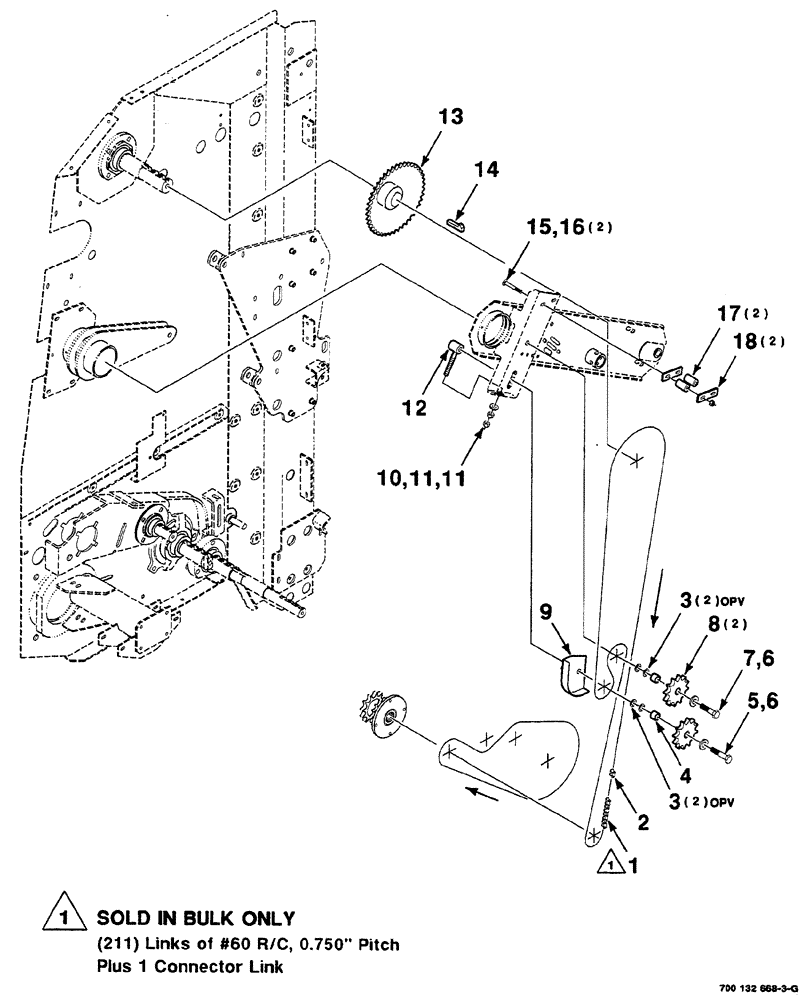

Запчасти Case IH RS561A (2-032) - ROLLER DRIVE ASSEMBLY, UPPER Driveline

1

241-1316

LINK,19.05mm Pitch

CHAIN roller, #60

1шт.

2

241-1316

LINK,19.05mm Pitch

connector, #60

1шт.

3

52233

BUSHING

GAUGE 5/8" x 14, narrow rim machinery

4шт.

4

700110610

SPACER

1шт.

5

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

6

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

2шт.

7

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

8

541857R92

SPROCKET,15T

IDLER 60P15T

2шт.

9

700153712

GUIDE

WA

1шт.

10

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2", hardened, plain

1шт.

11

425-108

NUT,1/2" - 13, Gr 5

2шт.

12

700135548

SPECIAL BOLT

DRAW WA

1шт.

13

700153688

SPROCKET ASSY.

WA, 60B48

1шт.

14

861088

BUCKET TOOTH KEY

1/2" x 2", Gib

1шт.

15

433-648

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3", Gr 5

3/8"-16 x 3", round head square neck bolt

2шт.

16

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8"-16, hex. flange top lock, R/G

2шт.

17

700716908

GUIDE

chain

2шт.

18

700716907

PLATE

guide

2шт.
