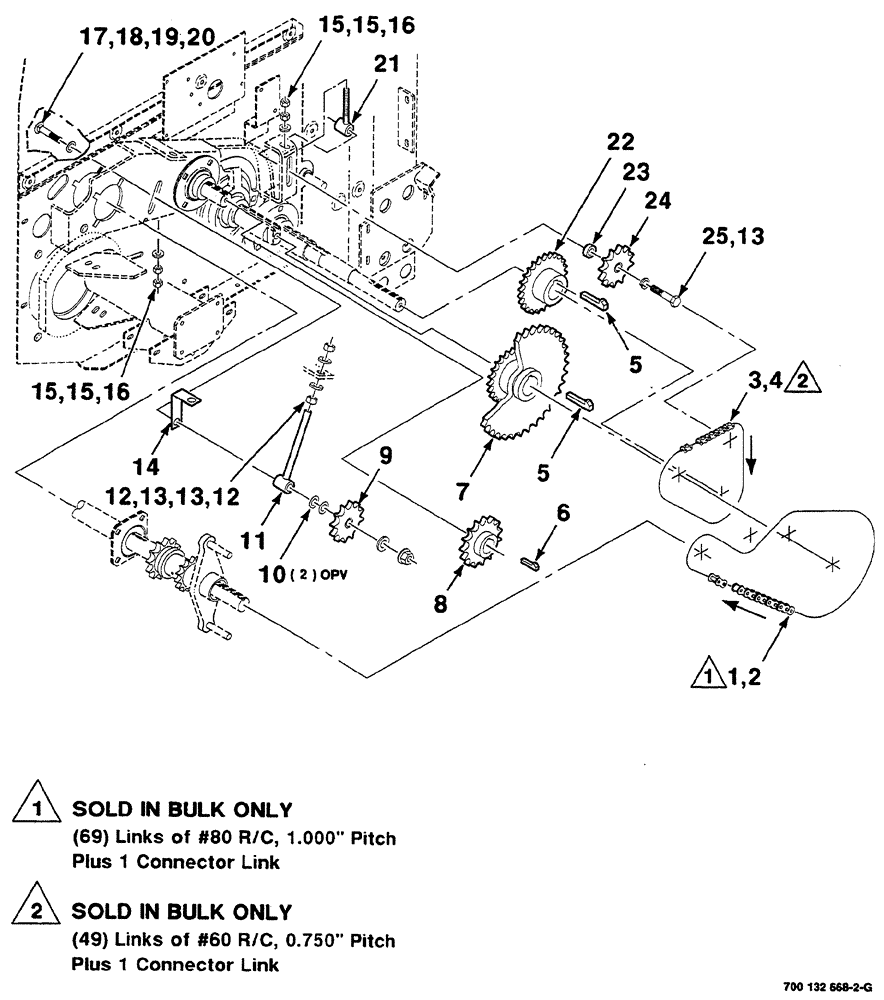

Запчасти Case IH RS561A (2-030) - ROLLER DRIVE ASSEMBLY, LOWER Driveline

1

654437R91

CHAIN (AG)

roller, #80, 10 foot bulk

1шт.

2

241-1418

SPRING CLIP

LINK connector, #80, R/C

1шт.

3

241-1316

LINK,19.05mm Pitch

CHAIN roller, #60, 10 foot bulk

1шт.

4

241-1316

LINK,19.05mm Pitch

connector, #60, R/C

1шт.

5

61747

KEY

1/2" x 2-1/2", Gib

2шт.

6

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

1шт.

7

700150109

SPROCKET ASSY.

WA, double, 23 and 36 tooth

1шт.

8

700132988

SPROCKET ASSY.

WA 15 tooth

1шт.

9

51200277

SPROCKET ASSY.

IDLER 80P12

1шт.

10

52183

BUSHING

GAUGE 3/4" x 18, narrow rim machinery

2шт.

11

700132524

BOLT

DRAW WA

1шт.

12

425-1010

NUT,5/8"-11, G5

2шт.

13

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

3шт.

14

700132745

ANGLE

1шт.

15

425-108

NUT,1/2" - 13, Gr 5

4шт.

16

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2", hardened, plain

2шт.

17

7870322

BOLT

3/4"-10 x 4", round head square neck bolt

1шт.

18

52258

BUSHING

GUAGE 1" x 14, narrow rim machinery

1шт.

19

705566

WASHER

3/4", hardened, plain

1шт.

20

232-53112

FLANGE NUT,Flg, 3/4"-10

1шт.

21

700135548

SPECIAL BOLT

DRAW WA

1шт.

22

700150114

SPROCKET ASSY.

WA, 25 tooth

1шт.

23

700110610

SPACER

1шт.

24

541857R92

SPROCKET,15T

idler, 15 tooth

1шт.

25

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.
