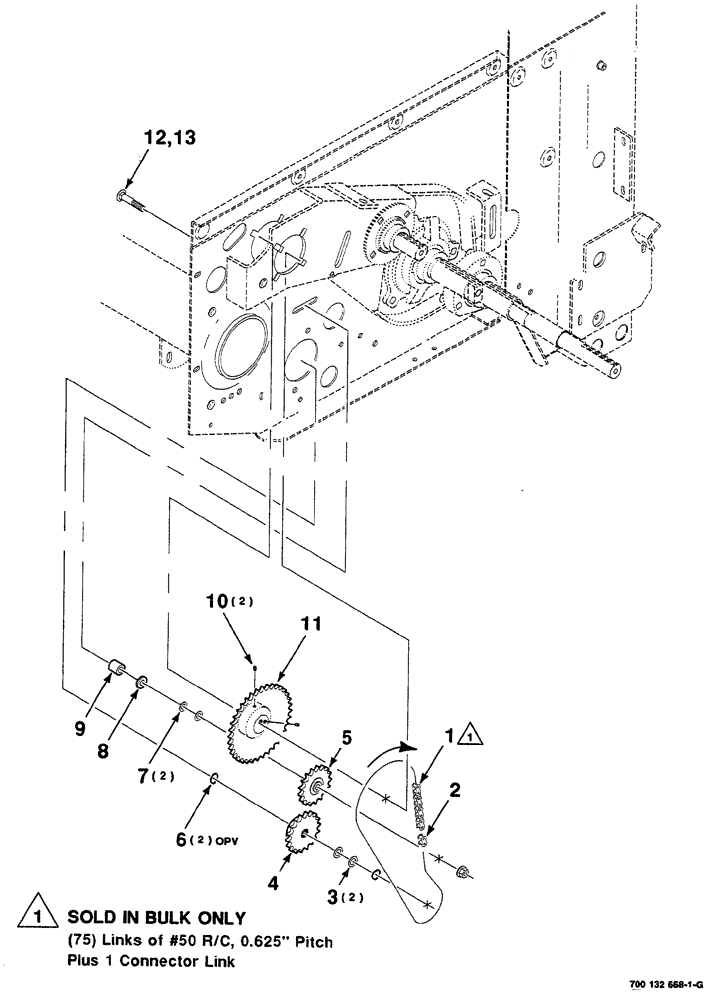

Запчасти Case IH RS561A (2-028) - PUMP DRIVE ASSEMBLY, LOWER RIGHT Driveline

1

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

roller, #50, 10 foot bulk

1шт.

2

241-1315

LINK, CONNECTING

#50, clip

1шт.

3

195-2091

WASHER,15/16" x 1 3/8" x .219"

GAUGE 7/8" x 14, narrow rim machinery bushing

2шт.

4

700132752

SPROCKET ASSY.

50B15

1шт.

5

700716888

SPROCKET ASSY.

idler, 50-17

1шт.

6

52811

RING, SNAP

RING SNAP ext., retaining

2шт.

7

95-81100

WASHER,33/64" x 7/8" x .049"

GAUGE 1/2" x 18, narrow rim machinery bushing

2шт.

8

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2", hardened, plain

1шт.

9

6181002

SPACER

1шт.

10

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

3/8"-16 x 3/8", cup point hex. socket set, NP

2шт.

11

700132751

SPROCKET ASSY.

WA, 50B36

1шт.

12

591514R1

CARRIAGE BOLT,1/2" - 13 x 2 3/4", Grade 5

1/2"-13 x 2 3/4", round head square neck bolt

1шт.

13

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2"-13, hex. flange top lock, GR/G

1шт.
