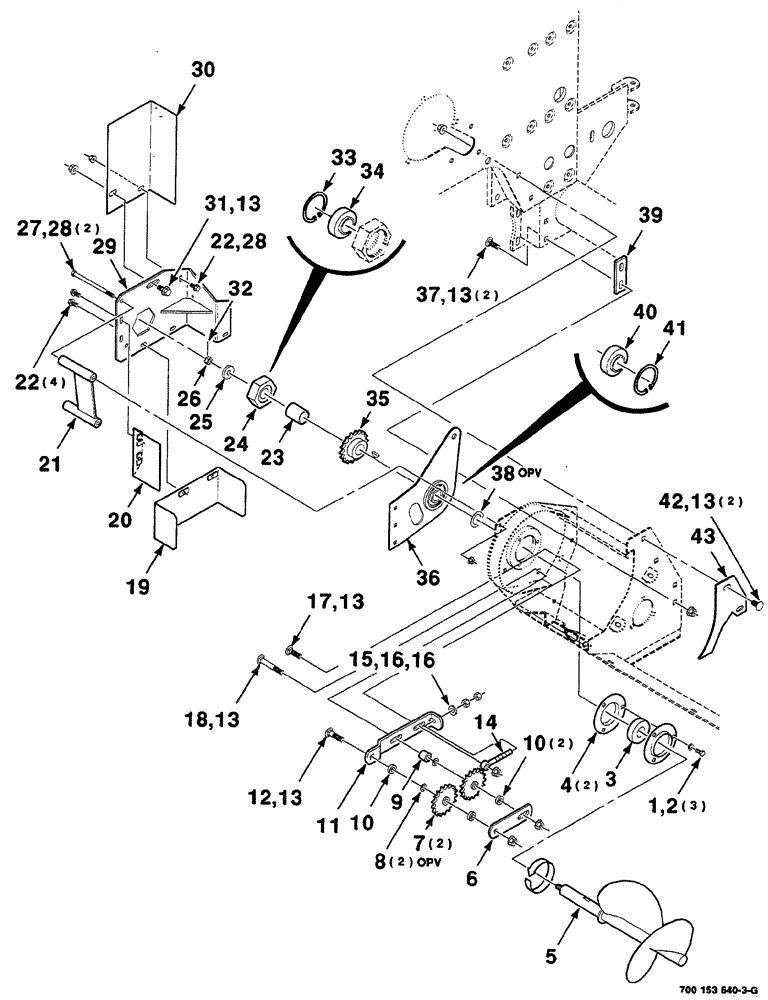

Запчасти Case IH RS561A (2-024) - STUFFER, AUGER AND DRIVE ASSEMBLIES, RIGHT Driveline

1

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

2

492-11038

LOCK WASHER,3/8"

3шт.

3

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

collar, less

1шт.

4

617863R1

FLANGED BEARING

2шт.

5

700150090

AUGER

WA, right

1шт.

6

700132765

STRAP

1шт.

7

700716888

SPROCKET ASSY.

idler

2шт.

8

95-81100

WASHER,33/64" x 7/8" x .049"

GAUGE 1/2" x 18, narrow rim machinery bushing

2шт.

9

700150104

SPACER

1шт.

10

6582696

SPACER

3шт.

11

700153669

SUPPORT

1шт.

12

433-840

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

1/2"-13 x 2-1/2", round head square neck bolt

1шт.

13

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2"-13, hex. flange top lock, GR/G

8шт.

14

241018

BOLT

eye

1шт.

15

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2", hardened, plain

1шт.

16

425-108

NUT,1/2" - 13, Gr 5

2шт.

17

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1/2"-13 x 1-3/4", round head square neck

1шт.

18

111-505

CARRIAGE BOLT,Short NK, 1/2"-13 x 3 1/2", G5

1шт.

19

700135742

SHIELD

WA, right

1шт.

20

700150081

SHIELD

WA, right

1шт.

21

700150079

SUPPORT

WA

1шт.

22

409-7612

BOLT,3/8"-16 x 1.09" OAL

5шт.

23

6587869

SPACER

1шт.

24

700150087

HUB

ASSY. includes: Ref. 33 & 34

1шт.

25

6181994

WASHER

special

1шт.

26

425-138

SLOTTED NUT,1/2"-20, G8

1шт.

27

413-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

3/8"-16 x 6", hex.

2шт.

28

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8"-16, hex. flange top lock, GR/G

3шт.

29

700150073

SUPPORT

WA, right

1шт.

30

700151504

SHIELD

1шт.

31

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2"-13 x 1", hex. flange, GR8

1шт.

32

432-816

COTTER PIN,1/8" x 1"

1шт.

33

100-21244

SNAP RING,2.44", Int, #244

1шт.

34

586649R92

BEARING, ROLLER, CYL,31.75mm ID x 62mm OD x 18mm W

cylindrical

1шт.

35

700150100

SPROCKET ASSY.

WA, 18 tooth

1шт.

36

700150097

SUPPORT

ASSY. right, includes: REF. 40 & 41

1шт.

37

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

2шт.

38

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

GAUGE 1-1/4" X 18, narrow rim machinery bushing

1шт.

39

700135747

PLATE

1шт.

40

587015R92

BEARING, ROLLER, CYL,31.75mm ID x 72mm OD x 19mm W

cylindrical

1шт.

41

740415

RING, SNAP

RING SNAP retaining

1шт.

42

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

2шт.

43

700135748

PLATE

1шт.
