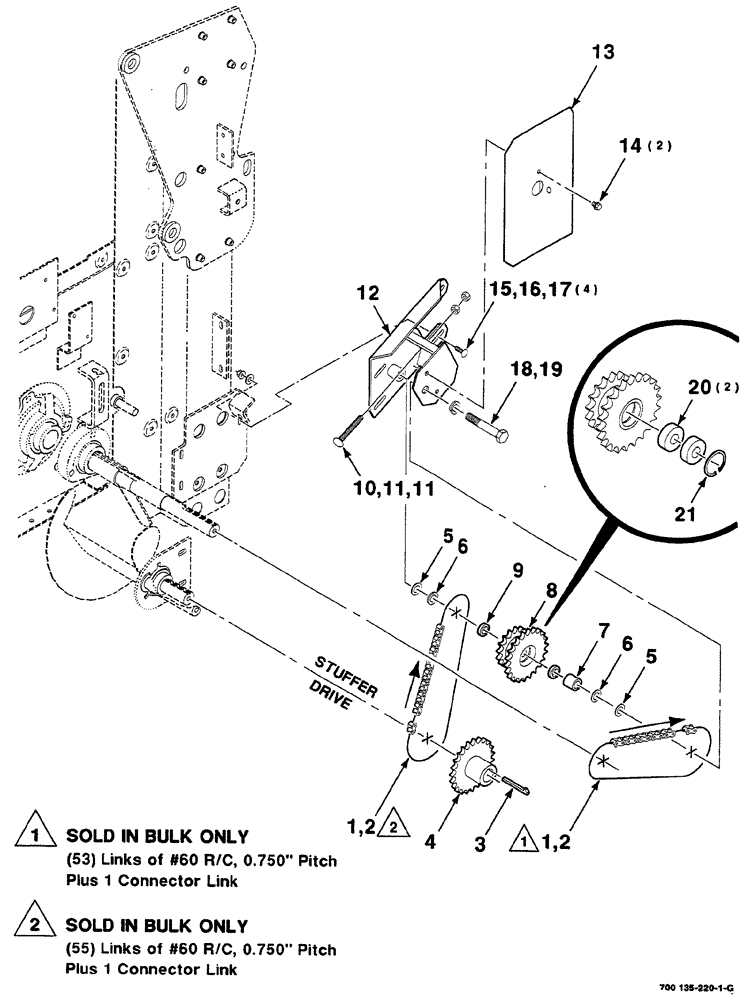

Запчасти Case IH RS561A (2-020) - STUFFER DRIVE ASSEMBLY Driveline

1

241-1316

LINK,19.05mm Pitch

CHAIN roller, #60, 10 foot bulk

2шт.

2

241-1316

LINK,19.05mm Pitch

CONNECTOR #60, R/C

2шт.

3

861468

KEY

5/16" x 2-3/4", Gib

1шт.

4

700135575

SPROCKET ASSY.

WA, 23 tooth

1шт.

5

95-81182

WASHER,0.81" ID x 1.25" OD x 0.07" Thk

GAUGE 3/4" x 14, narrow rim machinery bushing

2шт.

6

95-81051

WASHER,19.84mm ID x 31.75mm OD x 3.81mm Thk

GAUGE 3/4" x 10, narrow rim machinery bushing

2шт.

7

700105787

SPACER

1шт.

8

700135570

SPROCKET ASSY.

includes: REF. 20 & 21

1шт.

9

700135550

SPACER

1шт.

10

7770787

FITTING,Sq Nk, 1/2" - 13 x 4", Gr 5, Full Thd

1/2"-13 x 4", full thread round head square neck bolt

1шт.

11

425-108

NUT,1/2" - 13, Gr 5

2шт.

12

700135564

MOUNTING PARTS

WA

1шт.

13

700135944

SHIELD

1шт.

14

7883366

SCREW,Hex Washer, 3/8" - 16 x 1/2"

3/8"-16 x 1/2", hex. washer head machine

2шт.

15

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

4шт.

16

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8", hardened, plain

4шт.

17

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8"-16, hex. flange top lock, GR/G

4шт.

18

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

3/4"-10 x 4-1/2", hex. cap screw

1шт.

19

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

20

100-21175

SNAP RING,1.75", Int, #175

2шт.

21

T39594

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

1шт.
