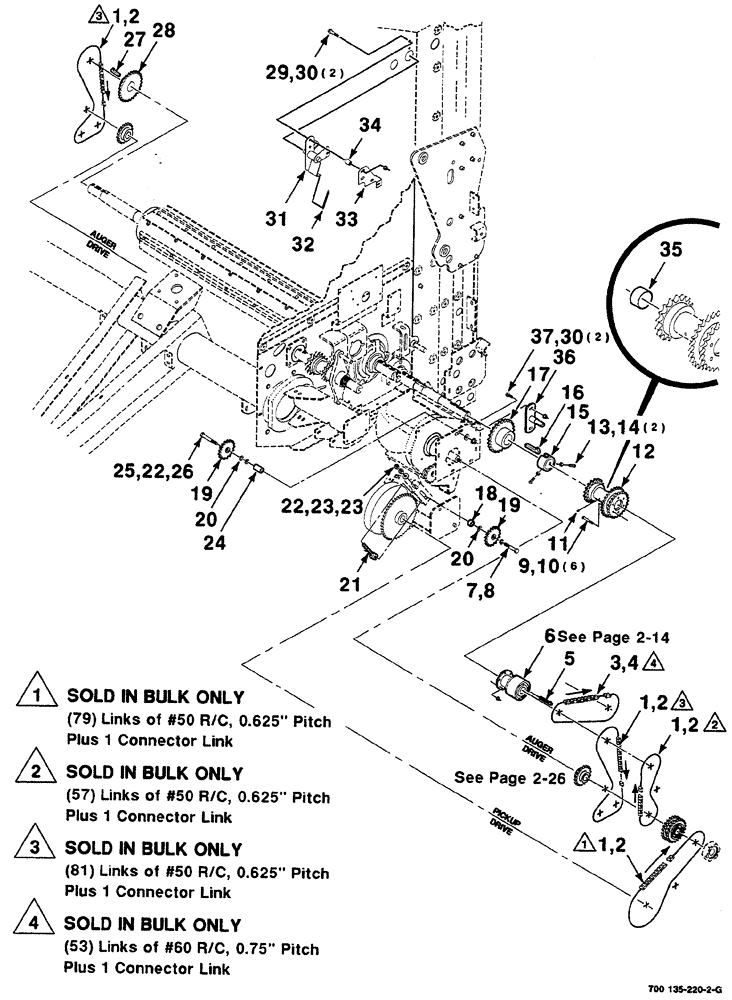

Запчасти Case IH RS561A (2-012) - PICKUP AND AUGER DRIVE ASSEMBLY Driveline

1

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

roller, #50, 10 foot bulk

4шт.

2

241-1315

LINK, CONNECTING

#50 R/C

4шт.

3

241-1316

LINK,19.05mm Pitch

CHAIN roller, #60, 10 foot bulk

1шт.

4

241-1316

LINK,19.05mm Pitch

connector, #60, R/C

1шт.

5

Q3936

KEY,Gib, 5/16" Sq x 2 1/2"

1шт.

6

700132789

CLUTCH

ASSY.

1шт.

7

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2"-13 x 2-3/4", hex. cap screw

1шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

9

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

6шт.

10

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16"-18, hex. flange top lock, GR/G

6шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

12

700717790

SPROCKET ASSY.

WA 17, 27 & 24 tooth, includes: REF. 35

1шт.

13

83-13810

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

3/8"-16 x 5/8", cup point hex. socket, NP

2шт.

14

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

15

700135556

SPACER

1шт.

16

61747

KEY

1/2" x 2-1/2", Gib

1шт.

17

700150114

SPROCKET ASSY.

WA, 25 tooth

1шт.

18

6537526

SPACER

1шт.

19

700716888

SPROCKET ASSY.

idler, 17 tooth

2шт.

20

95-81101

WASHER,0.52" ID x 0.88" OD x 0.07" Thk

GAUGE 1/2" x 14, narrow rim machinery bushing

2шт.

21

700147510

SPECIAL BOLT

draw, WA, plated

1шт.

22

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2", hardened, plain

2шт.

23

425-108

NUT,1/2" - 13, Gr 5

2шт.

24

6234710

SPACER

1шт.

25

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

1шт.

26

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2"-13, hex. flange top lock, GR/G

1шт.

27

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

1шт.

28

700150117

SPROCKET ASSY.

WA, 27 tooth

1шт.

29

700711132

BOLT

3/8"-16 x 2, hex. flange screw, GR8

2шт.

30

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8"-16, hex. flange top lock, GR/G

4шт.

31

700132544

LEVER

WA

1шт.

32

700709843

SPRING

extension

1шт.

33

700132549

SUPPORT

1шт.

34

6586259

SPACER

1шт.

35

700715085

BRONZE BUSHING

bronze

1шт.

36

700132550

SUPPORT

WA

1шт.

37

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.
