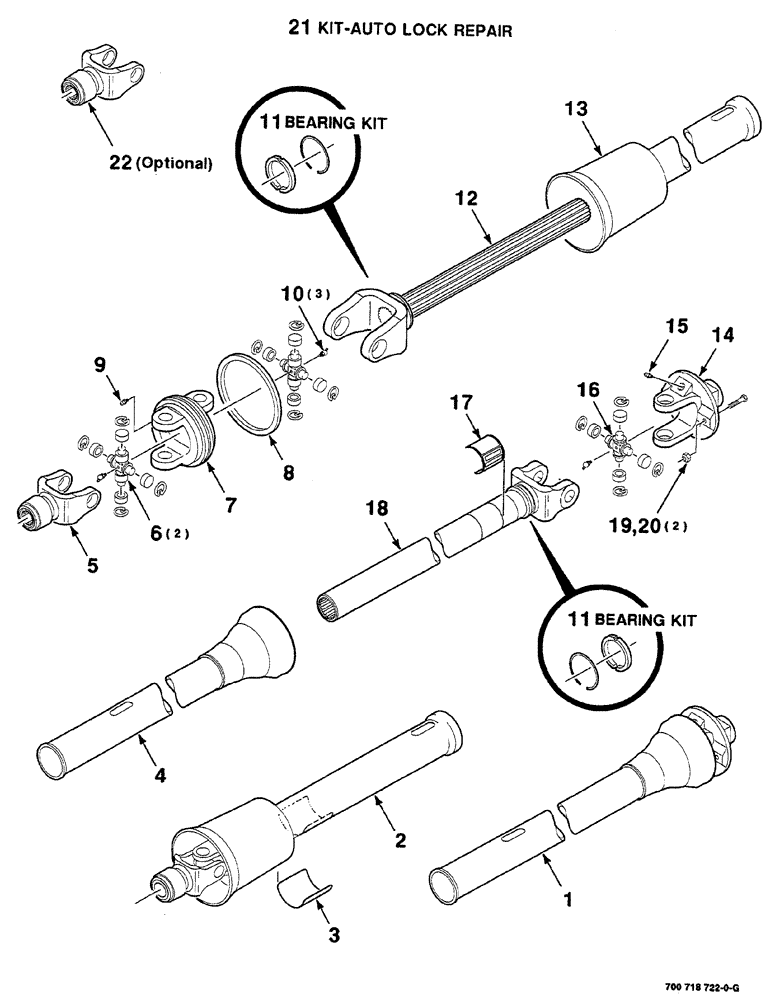

Запчасти Case IH RS561A (2-004) - IMPLEMENT DRIVELINE ASSEMBLY, 1000 RPM Driveline

1

700718724

YOKE

UNIVERSAL JOINT YOKE half, implement with guard

1шт.

2

700718737

YOKE

UNIVERSAL JOINT YOKE half, tractor with guard, 1-3/8"- 21spline, 1000 RPM

1шт.

3

80672C1

DECAL

danger, PTO

1шт.

4

700718733

SHIELD

inner

1шт.

5

700718725

YOKE

UNIVERSAL JOINT YOKE ASSY. 1-3/8"-21 spline, 1000 RPM

1шт.

6

700718728

KIT

cross and bearing

2шт.

7

700718729

HOUSING

center

1шт.

8

700718730

BELL HOUSING

extension, with nylon centralizer

1шт.

9

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

10

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8"-27 x 65°, Zerk

3шт.

11

700712735

SPACER

KIT and retainer

2шт.

12

700718731

YOKE

UNIVERSAL JOINT YOKE and SHAFT

1шт.

13

700718732

SHIELD

outer

1шт.

14

700718736

SHEARS

ASSY. free motion ball

1шт.

15

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

16

845198

KIT

cross and bearing

1шт.

17

1326528C1

DECAL

danger

1шт.

18

700718735

YOKE

UNIVERSAL JOINT YOKE tube and sleeve

1шт.

19

26-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

2шт.

20

231-4115

NUT,5/16"-18, GB

5/16"-18, hex. top, GRC CW

2шт.

21

700720122

REPAIR KIT

auto lock repair

1шт.

22

700718738

YOKE

UNIVERSAL JOINT YOKE ASSY. 1-3/4"-20 spline, 1000 RPM

1шт.
