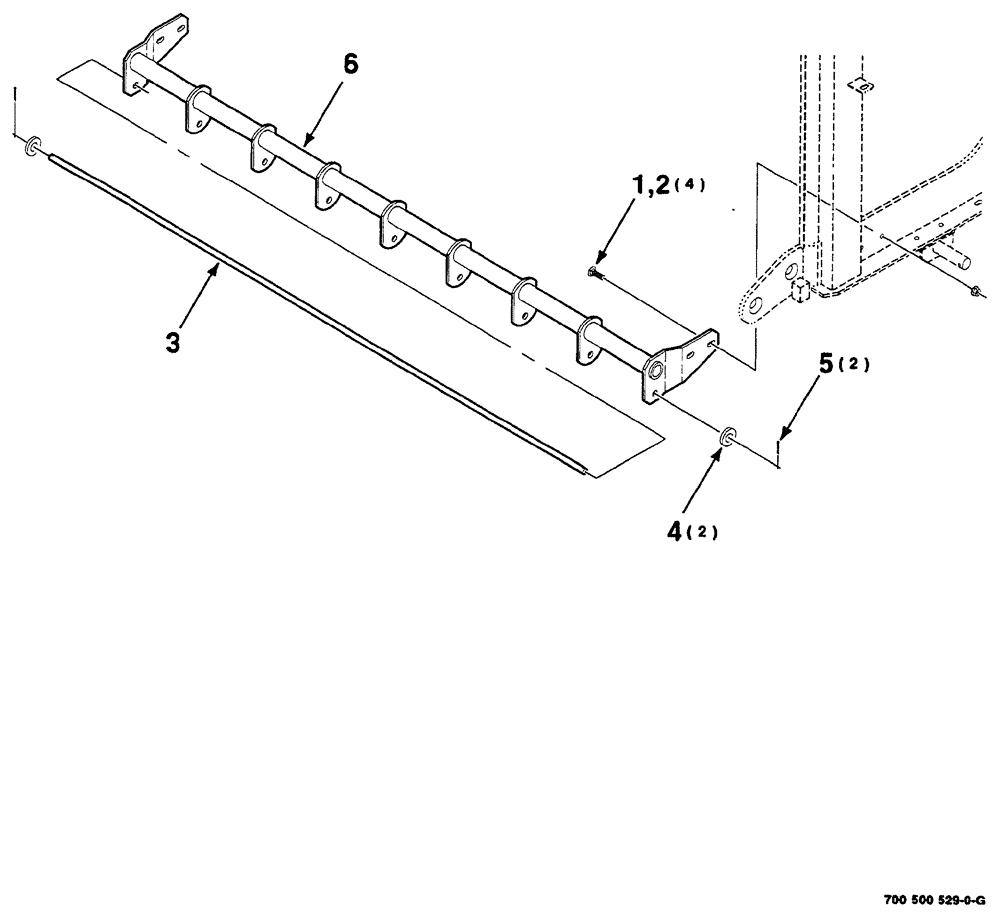

Запчасти Case IH RS561A (9-026) - BELT GUIDE KIT Decals & Attachments

1

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

4шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8"-16, hex. flange top lock, GR/G

4шт.

3

700132788

ROD

1шт.

4

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2", hardened, plain

2шт.

5

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

2шт.

6

700132782

GUIDE

WA, lower

1шт.
