(9-018) - HYDRAULIC CYLINDER ASSEMBLY, PICKUP LIFT, 700716327 COMPLETE

Запчасти Case IH RS561A (9-018) - HYDRAULIC CYLINDER ASSEMBLY,PICKUP LIFT, 700716327 COMPLETE Decals & Attachments

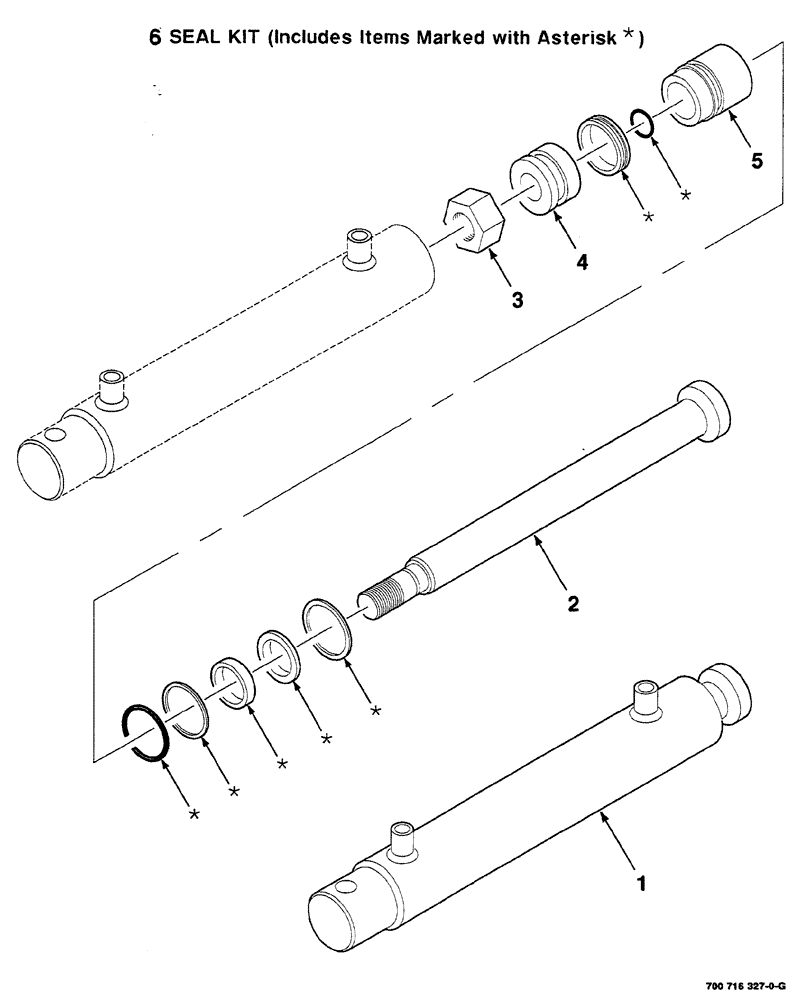

Схема запчастей Case IH RS561A - (9-018) - HYDRAULIC CYLINDER ASSEMBLY, PICKUP LIFT, 700716327 COMPLETE Decals & Attachments
2
*
*
1
*
*
*
3
6
*
5
*
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700716327

CYLINDER

ASSY. hydraulic, complete, 1-1/2 in. bore x 7-1/4 in. stroke

1шт.

2

700716691

ROD

piston

1шт.

3

700707412

LOCK NUT

3/4"-16

1шт.

4

700716690

PISTON

1шт.

5

700716692

GUIDE

piston

1шт.

6

700716693

KIT

seal and o-ring repair, Includes items in art marked with asterisk

1шт.

Выбрано товаров: 6
