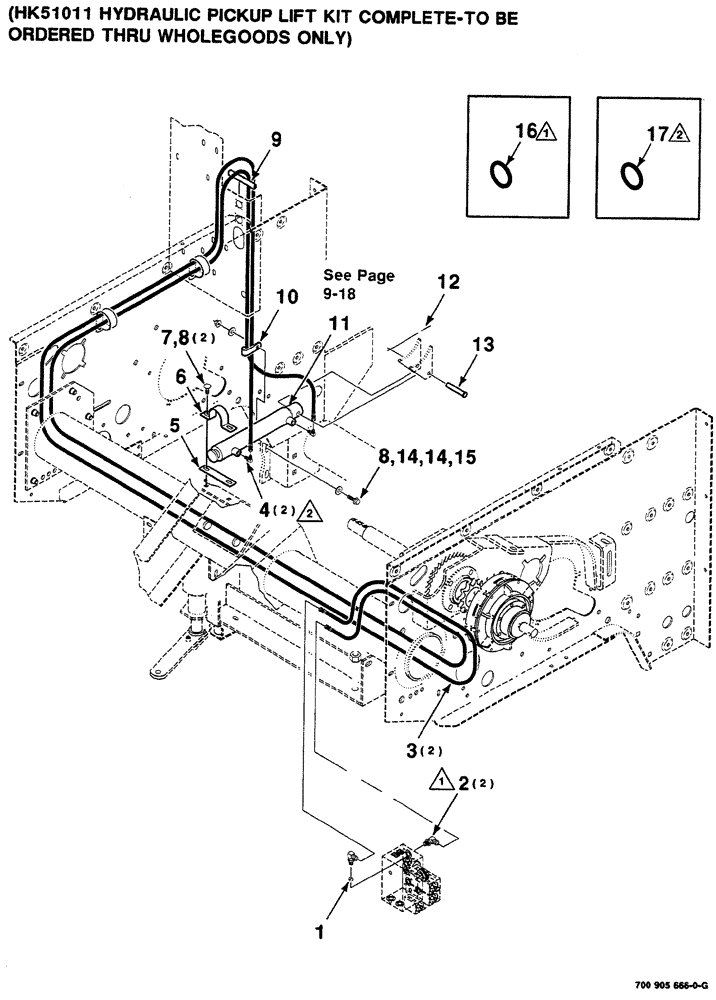

Запчасти Case IH RS561A (9-016) - HYDRAULIC PICKUP LIFT KIT, HK51011 COMPLETE Decals & Attachments

HK51011

KIT hydraulic, pickup lift, complete, to be ordered through wholegoods only

1шт.

1

700710252

ORIFICE

9/16"-18, plate, .038

1шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 11

2шт.

3

700719095

HYDRAULIC HOSE,0.25" ID x 177.17", SAE J516, SAE J343

hydraulic

2шт.

4

700707498

ELBOW

90°, includes: REF. 10

2шт.

5

700150179

SPACER

1шт.

6

700150178

CLAMP

1шт.

7

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

2шт.

8

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8"-16, hex. flange top lock, GR/G

3шт.

9

700153662

GROMMET

1шт.

10

700717627

CLAMP

line

1шт.

11

700716327

CYLINDER

ASSY., hydraulic

1шт.

12

432-1020

COTTER PIN,5/32" x 1 1/4"

1шт.

13

063875

CLEVIS PIN

1/2" x 2-1/2"

1шт.

14

495-21044

WASHER,3/8"

2шт.

15

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8"-16 x 1-1/4", hex. flange, GR8

1шт.

16

738468

O-RING

1шт.

17

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.
