Запчасти Case IH RS561A (5-004) - KICKER ASSEMBLY, LEFT (16) - BALE EJECTOR

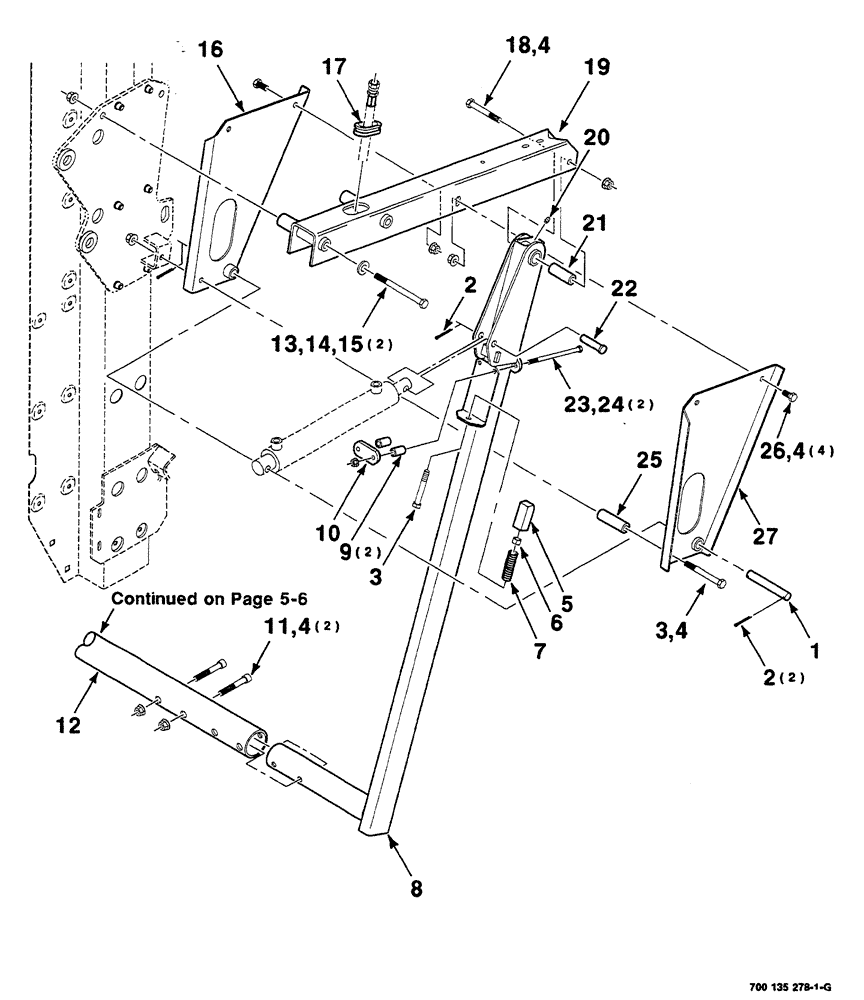

Схема запчастей Case IH RS561A - (5-004) - KICKER ASSEMBLY,  LEFT (16) - BALE EJECTOR
6
3
18
4
27
9
19
24
7
5
16
4
4
10
14
20
25
4
17
22
3
23
21
12
13
26
11
1
15
2
2
8

Артикул

Название

Примечание

Количество

1

700132165

PIN

1шт.

2

432-1020

COTTER PIN,5/32" x 1 1/4"

3шт.

3

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1/2"-13 x 4-1/2", hex. cap screw

2шт.

4

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2"-13, hex. flange top lock, GR/G

8шт.

5

700135979

LATCH

1шт.

6

425-108

NUT,1/2" - 13, Gr 5

1шт.

7

700716851

SPRING

compression

1шт.

8

700150833

STRUT

WA, left

1шт.

9

700135978

SPACER

2шт.

10

700135976

PLATE

1шт.

11

61-35052

HEX SOC SCREW,1/2"-13 x 3 1/4"

1/2"-13 x 3-1/4", hex. socket head cap, special

2шт.

12

700150216

TUBE,73.02 mm OD, 1530 mm Length

kicker

1шт.

13

413-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

5/8"-11 x 7-1/2", hex.

2шт.

14

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

2шт.

15

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8"-11, hex. flange top lock, GR/G

2шт.

16

700150831

MOUNTING PARTS

CHANNEL WA, right

1шт.

17

8027427

GROMMET

1шт.

18

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

1шт.

19

700150218

CHANNEL

WA, left

1шт.

20

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

21

700132166

SPACER

1шт.

22

700708068

CLEVIS PIN,15.77mm OD x 68.66mm L

5/8" x 2-1/2 "

1шт.

23

413-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

3/8"-16 x 6, hex.

2шт.

24

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8"-16, hex. flange top lock, GR/G

2шт.

25

HFI140186

SPACER

1шт.

26

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

27

700150829

MOUNTING PARTS

CHANNEL WA, left

1шт.

Выбрано товаров: 27
