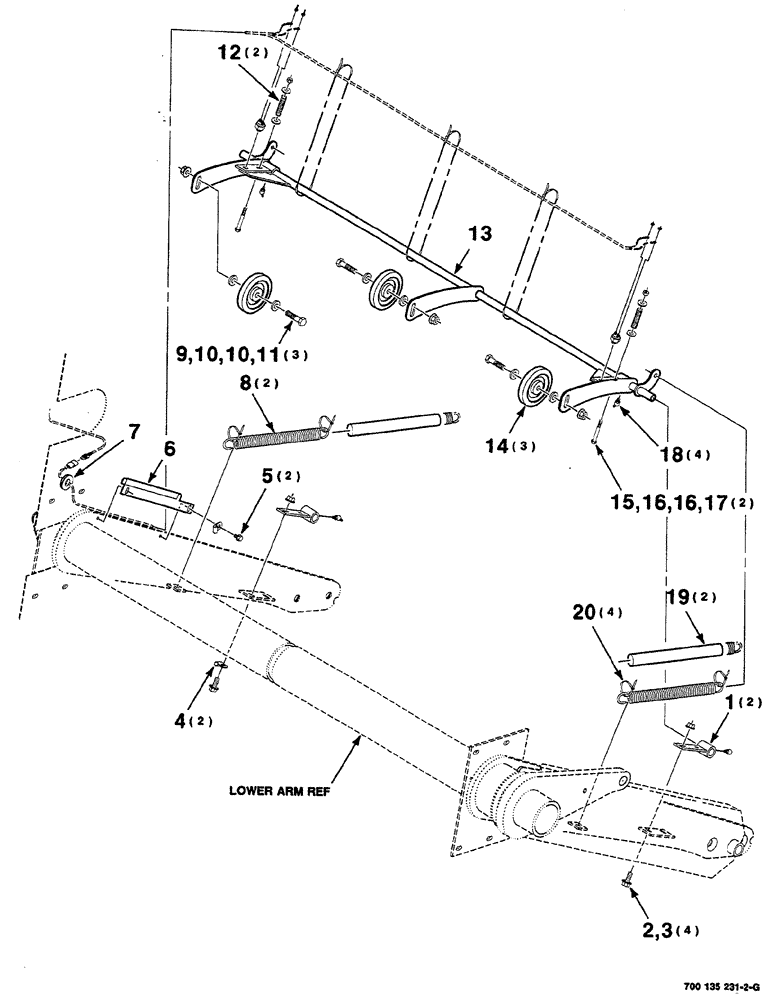

Запчасти Case IH RS561A (6-026) - BALE SHAPE MONITOR ASSEMBLY (14) - BALE CHAMBER

1

700132176

SUPPORT

WA

2шт.

2

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.

5

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

6

700132519

COVER

wire

1шт.

7

7827983

GROMMET

1шт.

8

700710130

SPRING

extension

2шт.

9

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

10

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2", hardened, plain

6шт.

11

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2"-13, hex. flange top lock, GR/G

3шт.

12

7058266

SPRING

compression

2шт.

13

700135686

SUPPORT

WA

1шт.

14

111767C2

BALL BEARING,1.468" ID x 4.25" OD x 0.875"

idler, rubber tire

3шт.

15

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

16

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16" wide, plain

4шт.

17

230-4115

LOCK NUT,5/16"-18, GA

5/16"-18, hex. top lock, GR/B

2шт.

18

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4"-28 x 45°, Zerk

4шт.

19

700719513

SLEEVE

nylon

2шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP TIE cable

4шт.
