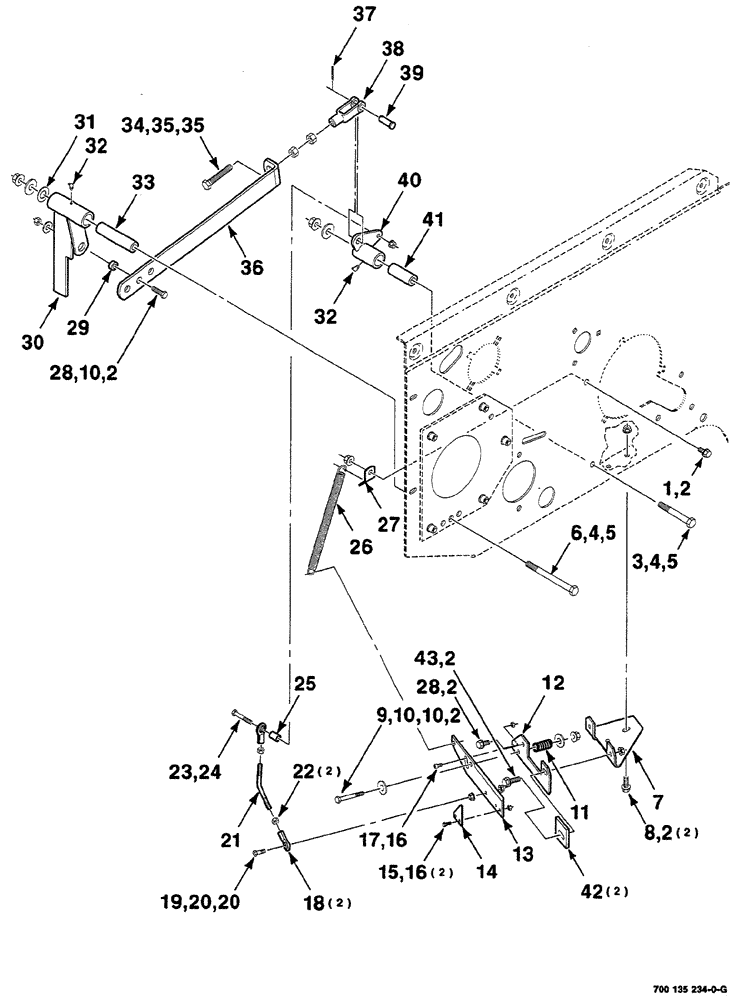

Запчасти Case IH RS561A (6-020) - TWINE CUTOFF ASSEMBLY (14) - BALE CHAMBER

1

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8"-16, hex. flange top lock, GR/G

7шт.

3

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

1шт.

4

700711557

WASHER

1/2", hardened, wide, plain

2шт.

5

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2"-13, hex. flange top lock, GR/G

2шт.

6

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

1/2"-13 x 5-1/2", hex. cap screw

1шт.

7

700135096

SUPPORT

knife

1шт.

8

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

9

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

10

496-81010

WASHER

3/8", hardened, wide, plain

3шт.

11

700718504

SPRING

compression

1шт.

12

700715132

KNIFE

upper

1шт.

13

700715133

KNIFE

lower

1шт.

14

700135101

PLATE

1шт.

15

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

16

232-4114

LOCK NUT,1/4"-20, GC

1/4"-20, hex. top, GR/B

3шт.

17

61-3258

HEX SOC SCREW,1/4"-20 x 1/2"

1/4"-20 x 1/2", hex. socket head cap, special

1шт.

18

700703692

ADJUSTMENT ROD

ROD end

2шт.

19

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16"-18 x 1-1/4", hex. cap screw

1шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

21

700135094

ROD

1шт.

22

425-115

NUT,5/16"-24, G5

2шт.

23

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

24

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16"-18, hex. flange top lock, GR/G

1шт.

25

700117081

SPACER

1шт.

26

51200296

SPRING

extension

1шт.

27

700135057

CLIP

1шт.

28

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

29

6212740

SPACER

1шт.

30

700150118

LEVER

WA

1шт.

31

52258

BUSHING

GAUGE 1" x 14, narrow rim machinery

1шт.

32

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

33

700132382

SPACER

TUBE

1шт.

34

113-420

BOLT,Hex, 1/2" - 13 x 3", Gr 5, Full Thd

1шт.

35

425-108

NUT,1/2" - 13, Gr 5

2шт.

36

700135100

LINK

1шт.

37

432-1020

COTTER PIN,5/32" x 1 1/4"

1шт.

38

66183

SHAFT

1шт.

39

700708652

CLEVIS PIN

1/2 x 1-27/64"

1шт.

40

700135097

CRANK

WA

1шт.

41

700135081

TUBE,0.562" ID, 25.4 mm OD, 65 mm Length

1шт.

42

700132652

STOP

2шт.

43

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8"-16 x 1-1/4", hex. flange, GR8

1шт.
