(9-006) - DECAL AND LOCATION DIAGRAM, OPERATIONAL, CONTINUED

Запчасти Case IH RS561A (9-006) - DECAL AND LOCATION DIAGRAM,OPERATIONAL, CONTINUED Decals & Attachments

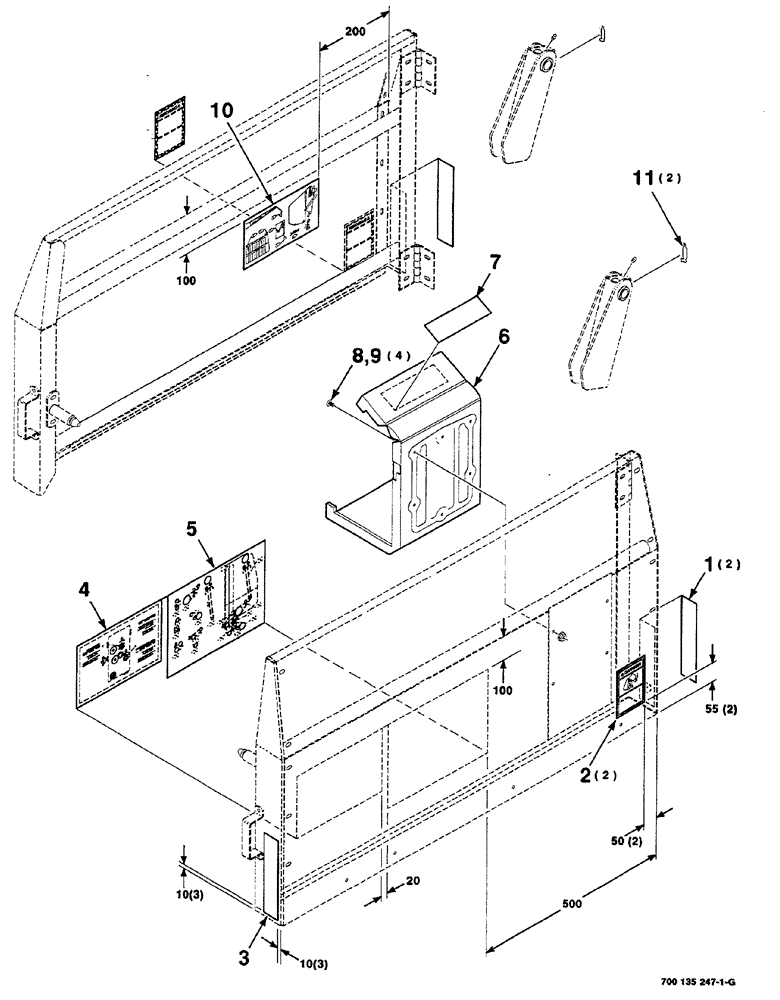

Схема запчастей Case IH RS561A - (9-006) - DECAL AND LOCATION DIAGRAM, OPERATIONAL, CONTINUED Decals & Attachments
11
4
7
10
2
6
5
3
1
9
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700717402

REFLECTOR

red

2шт.

2

700718107

DECAL

danger

2шт.

3

700717403

REFLECTOR

amber

1шт.

4

700717675

DECAL

valve adjustment

1шт.

5

700719486

DECAL

routing

1шт.

6

700714418

HOLDER

manual

1шт.

7

700714585

DECAL

manual holder

1шт.

8

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

GR60M

4шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

10

700716322

DECAL

routing

1шт.

11

7889306

DECAL

lube

2шт.
