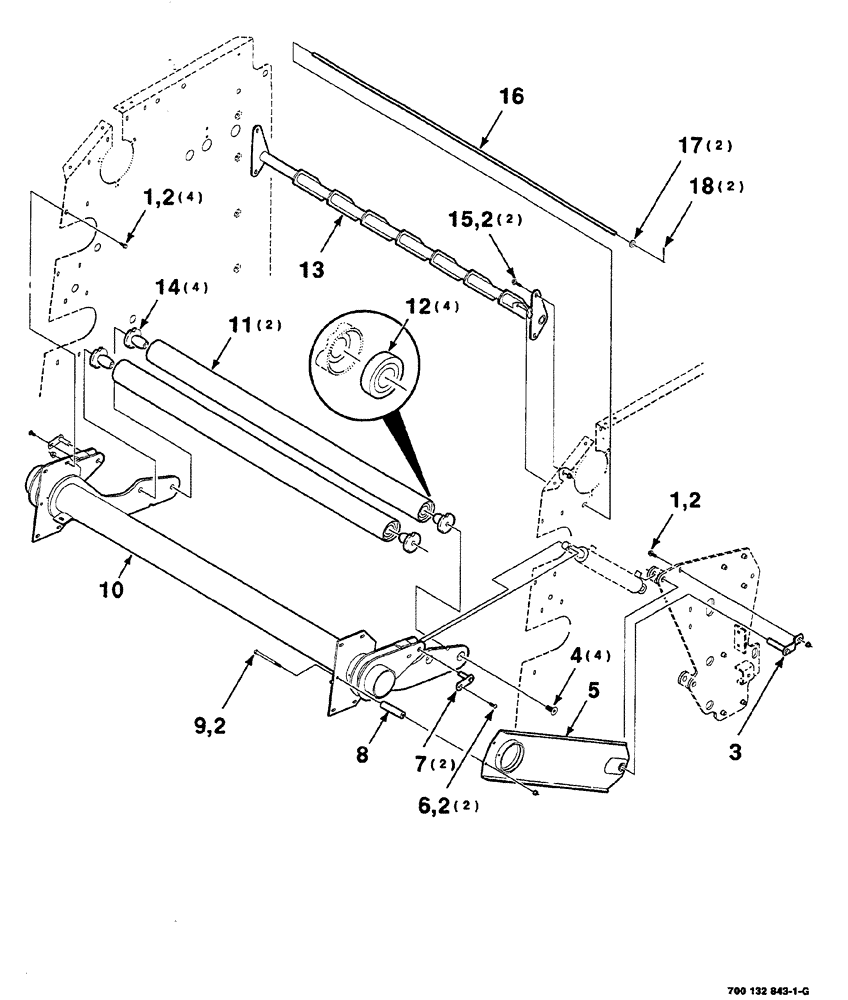

Запчасти Case IH RS561A (6-012) - BELT TENSIONING ROLLER ASSEMBLY (14) - BALE CHAMBER

1

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

5шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8"-16, hex. flange top lock, GR/G

10шт.

3

700132870

SPECIAL PIN

WA

1шт.

4

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

3/4"-10 x 1-3/4", hex. socket flat countersunk head cap

4шт.

5

700132889

SUPPORT

WA, upper

1шт.

6

7884414

CAPSCREW,Button Hd, 3/8" - 16 x 1", Gr 8

3/8"-16 x 1", HSHBHCS, GR8, NP

2шт.

7

700132919

SPECIAL PIN

WA

2шт.

8

700132891

TUBE,25.4 mm OD, 102.5 mm Length

SPACER

1шт.

9

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

1шт.

10

700132868

ARM

WA, upper

1шт.

11

700124615

ROLLER

ASSY. includes: REF. 12

2шт.

12

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

cylindrical

4шт.

13

700132776

GUIDE

WA, upper

1шт.

14

700100927

HUB

4шт.

15

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8"-16 x 1-1/4", hex. flange, GR8

2шт.

16

700132781

ROD

1шт.

17

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2", hardened, plain

2шт.

18

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

2шт.
