Запчасти Case IH RS561A (6-008) - TAILGATE ROLLER ASSEMBLIES (14) - BALE CHAMBER

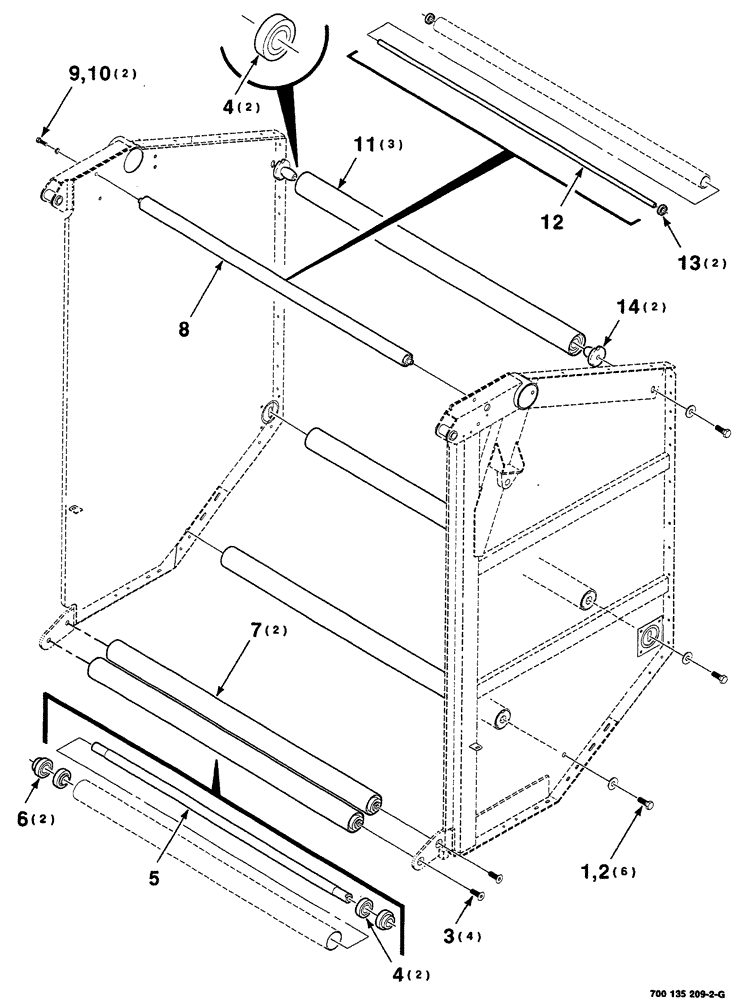

Схема запчастей Case IH RS561A - (6-008) - TAILGATE ROLLER ASSEMBLIES (14) - BALE CHAMBER
7
11
4
12
2
10
14
5
3
9
4
1
6
13
8

Артикул

Название

Примечание

Количество

1

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

6шт.

2

705566

WASHER

3/4", hardened, plain

6шт.

3

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

3/4"-10 x 1-3/4", hex. socket flat countersunk head cap, special

4шт.

4

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

cylindrical

4шт.

5

700130863

SHAFT

1шт.

6

F82059

BEARING ASSY,38.1mm ID x 80mm OD x 22mm W

cylindrical

2шт.

7

700130862

ROLLER

ASSY. includes: REF. 4, 5 & 6

2шт.

8

700135478

ROLLER

ASSY. includes: REF. 12 & 13

1шт.

9

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

11

700124612

ROLLER

ASSY. includes: REF. 4

3шт.

12

700135480

SHAFT

1шт.

13

586156R92

BEARING, ROLLER, CYL,0.7505" ID x 47 mm OD x 0.8437, 0.53125"

cylindrical

2шт.

14

700100927

HUB

2шт.

Выбрано товаров: 14
