(6-006) - TAILGATE SUPPORT ASSEMBLIES, MESH WRAP ONLY

Запчасти Case IH RS561A (6-006) - TAILGATE SUPPORT ASSEMBLIES,MESH WRAP ONLY (14) - BALE CHAMBER

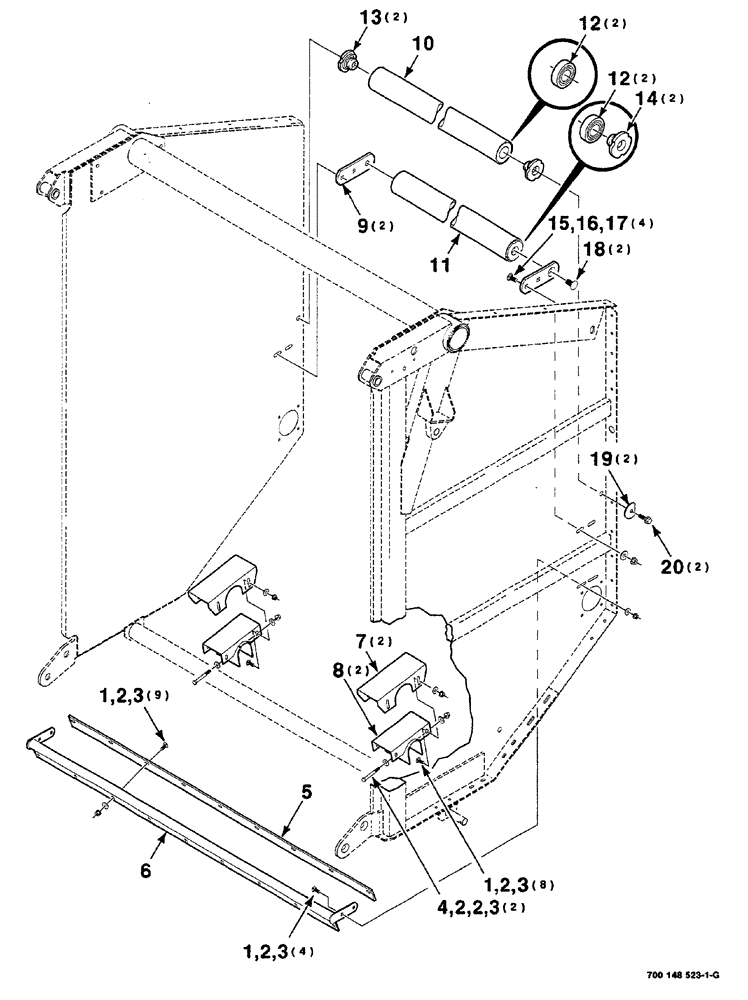

Схема запчастей Case IH RS561A - (6-006) - TAILGATE SUPPORT ASSEMBLIES, MESH WRAP ONLY (14) - BALE CHAMBER
1
15
12
9
2
8
3
17
19
2
18
1
2
4
11
3
3
5
7
12
20
10
1
3
2
2
16
6
14
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

21шт.

2

496-81010

WASHER

3/8", hardened wide plain

25шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8"-16, hex. flange top lock, GR/G

23шт.

4

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

5

700148781

SCRAPER

1шт.

6

700148778

MOUNTING PARTS

WA

1шт.

7

700148714

SUPPORT

2шт.

8

700148787

SUPPORT

WA

2шт.

9

700148683

STRAP

2шт.

10

700124612

ROLLER

ASSY. includes: REF. 12

1шт.

11

700148782

ROLLER

ASSY. includes: REF. 12 & 14

1шт.

12

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

cylindrical

4шт.

13

700718217

HUB

2шт.

14

700100927

HUB

2шт.

15

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

4шт.

16

700711557

WASHER

1/2", hardened wide plain

4шт.

17

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2"-13, hex. flange top lock, GR/G

4шт.

18

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

3/4"-10 x 1-3/4", hex. socket flat countersunk head cap, SPL

2шт.

19

700151502

WASHER

special

2шт.

20

8701237

BOLT

1/2"-13 x 1-1/2", hex. flange screw, GR8

2шт.
