(7-042) - MESH WRAP SHIELD ASSEMBLY

Запчасти Case IH RS561A (7-042) - MESH WRAP SHIELD ASSEMBLY (12) - MAIN FRAME

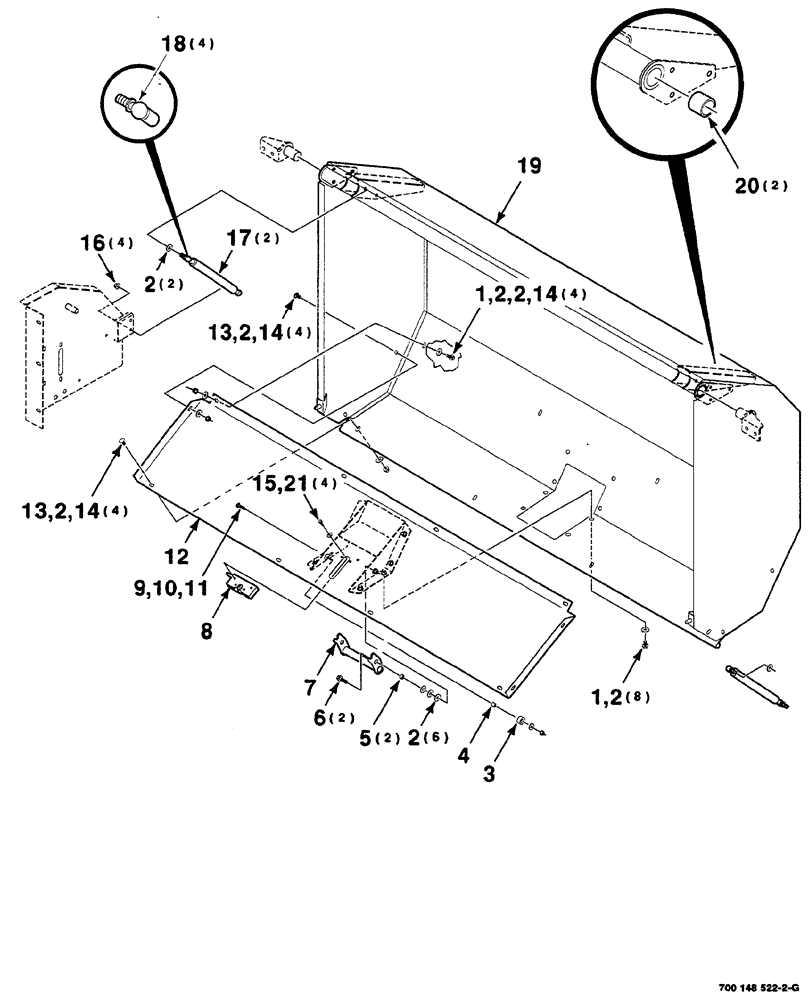

Схема запчастей Case IH RS561A - (7-042) - MESH WRAP SHIELD ASSEMBLY (12) - MAIN FRAME
2
15
11
4
2
9
18
2
16
14
2
6
14
5
8
1
17
19
13
2
14
1
2
10
13
20
3
2
7
12
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

409-7612

BOLT,3/8"-16 x 1.09" OAL

12шт.

2

496-81010

WASHER

3/8", hardened, wide, plain

32шт.

3

700717030

BUSHING

1шт.

4

6523799

BUSHING

tensioner

1шт.

5

6270888

BUSHING

SPACER

2шт.

6

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8"-16 x 1-1/4", hex. flange, GR8

2шт.

7

700148582

LATCH

WA

1шт.

8

700720033

LATCH

1шт.

9

433-520

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

5/16"-18 x 1-1/4", round head square neck bolt

1шт.

10

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16", wide, plain

1шт.

11

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16"-18, hex. flange top lock, GR/G

1шт.

12

700148756

SUPPORT

WA

1шт.

13

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

8шт.

14

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8"-16, hex. flange top lock, GR/G

12шт.

15

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4"-20 x 3/4", hex. washer head machine

4шт.

16

700711876

LOCK NUT

M10 x 1.5, hex. flange top lock, class 9

4шт.

17

700717029

CYLINDER ASSY.

SPRING gas, includes: REF.18

2шт.

18

700718303

JOINT

14-28, ball

4шт.

19

700148806

SHIELD

WA

1шт.

20

700152035

BUSHING

2шт.

21

495-21031

WASHER,1/4"

4шт.
