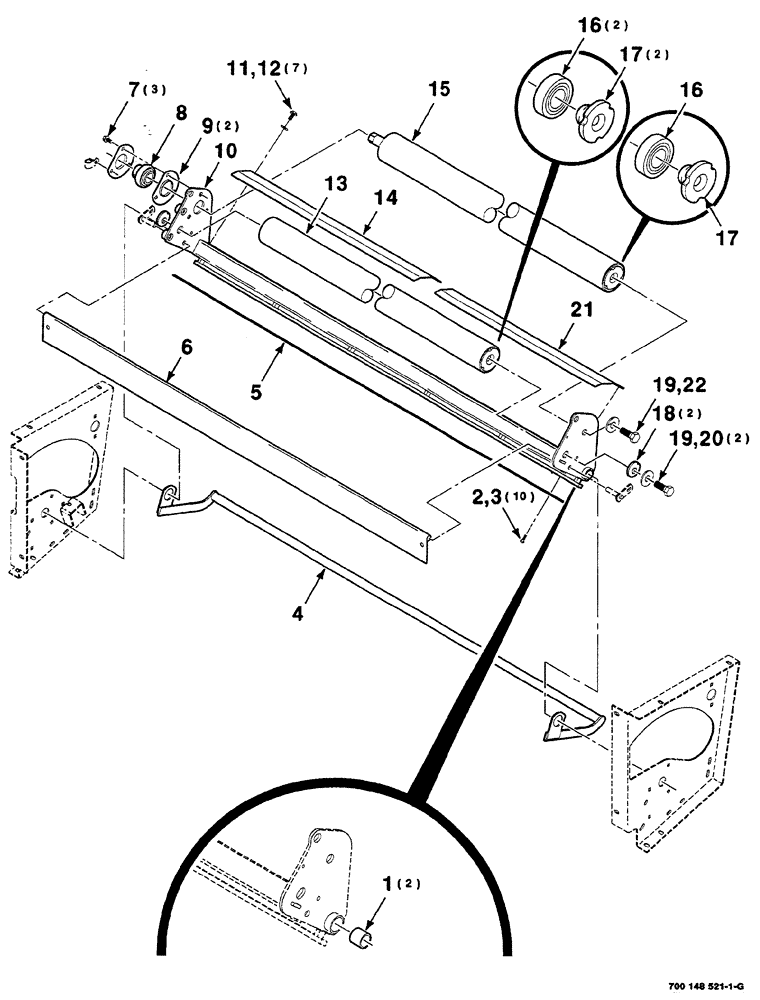

Запчасти Case IH RS561A (7-040) - MESH WRAP ROLLER ASSEMBLIES (12) - MAIN FRAME

1

7852254

BRONZE BUSHING

2шт.

2

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4"-20 x 1", hex. cap

10шт.

3

1703354

NUT

1/4"-20, hex. flange top lock, GR/G

10шт.

4

700148745

ARM

WA

1шт.

5

700717216

KNIFE

1шт.

6

700148741

PANEL

1шт.

7

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

8

619737R91

BEARING ASSY,31.76mm ID x 62mm OD x 18mm W

spherical

1шт.

9

405696

FLANGE

special

2шт.

10

700148727

FRAME

WA, includes: REF. 1

1шт.

11

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8"-16 x 3/4", hex. washer head thread cutting tapping

7шт.

12

496-81010

WASHER

3/8", hardened, wide, plain

7шт.

13

700148738

ROLLER

ASSY. plated, includes: REF. 16 & 17

1шт.

14

700152039

SHIELD

R.H.

1шт.

15

700148739

ROLLER

ASSY. rubber, includes: REF. 16 & 17

1шт.

16

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

cylindrical

3шт.

17

700100927

HUB

3шт.

18

700148648

WASHER

adjustment

2шт.

19

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

3шт.

20

705566

WASHER

3/4", hardened, plain

2шт.

21

700152038

SHIELD

L.H.

1шт.

22

700711166

WASHER

3/4", hardened, wide, plain

1шт.
