(08-048) - HYDR. CYL. ASSEMBLY (THREADER) (2-1/4 IN. BORE X 12 IN. STROKE) (S.N. CFH0156001 THRU CFH0156399)

Запчасти Case IH RS561 (08-048) - HYDR. CYL. ASSEMBLY (THREADER) (2-1/4 IN. BORE X 12 IN. STROKE) (S.N. CFH0156001 THRU CFH0156399) (07) - HYDRAULICS

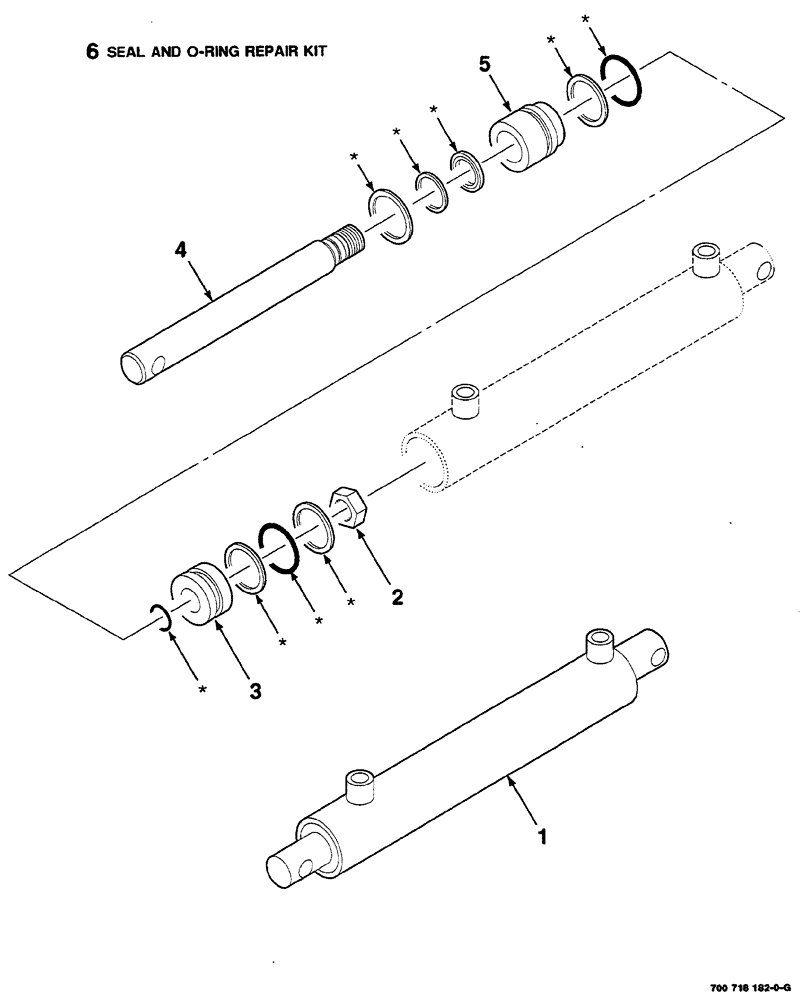

Схема запчастей Case IH RS561 - (08-048) - HYDR. CYL. ASSEMBLY (THREADER) (2-1/4 IN. BORE X 12 IN. STROKE) (S.N. CFH0156001 THRU CFH0156399) (07) - HYDRAULICS
5
3
1
2
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700718182

CYLINDER

HYDRAULIC ASSEMBLY COMPLETE (2-1/4 inch bore x 12 inch stroke)

1шт.

2

700707418

JAM NUT

hex jam, 7/8-14 UNF

1шт.

3

700710829

PISTON

1шт.

4

700710836

ROD

PISTON

1шт.

5

700712186

GUIDE

ROD

1шт.

6

700712177

SEAL

KIT and O-ring repair, includes items in art marked with asterisk

1шт.

Выбрано товаров: 6
