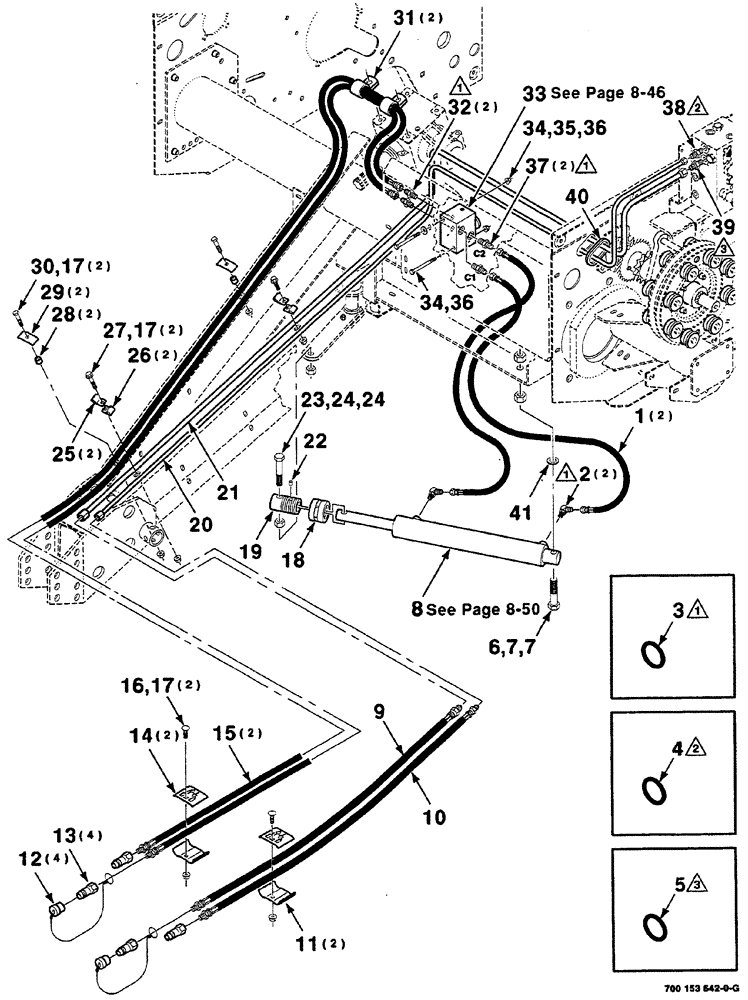

Запчасти Case IH RS561 (08-044) - HYDRAULIC ASSEMBLY - THREADER CONTROL (S.N. CFH0156400 AND LATER) (07) - HYDRAULICS

1

700714806

HYDRAULIC HOSE,0.25" ID x 39.37", SAE J517, SAE J516, SAE J343

hydraulic

2шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

(Includes Ref. 3)

2шт.

3

738468

O-RING

1шт.

Part of Ref. 2, 32, and 37, part numbers 218-5105, 218-5351, and 218-5057

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of Ref. 38, part number 846717

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of Ref. 39, part number 218-5059

1шт.

6

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

hex, 3/4-10 x 3-1/4

1шт.

7

425-1012

NUT,3/4"-10, G5

2шт.

8

700719879

CYLINDER

ASSEMBLY hydraulic

1шт.

9

700718199

HYDRAULIC HOSE,0.63" ID x 58.07", SAE 100R2, SAE J517, SAE J343, SAE J516

hydraulic

1шт.

10

7072135

HYDRAULIC HOSE,0.50" ID x 58.00", SAE 100R2

hydraulic

1шт.

11

700129086

CLAMP

2шт.

12

700718082

CAP

dust

4шт.

13

1-7141

FITTING

COUPLER quick disconnect

4шт.

14

700129085

CLAMP

2шт.

15

700716257

HYDRAULIC HOSE,0.38" ID x 129.92", SAE J516, SAE J343

hydraulic

2шт.

16

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

2шт.

17

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

6шт.

18

700135930

NUT

cylinder stop

1шт.

19

700135809

STOP

cylinder

1шт.

20

700716243

LINE

hydraulic, left outer

1шт.

21

700716242

LINE

hydraulic, left inner

1шт.

22

700716646

STOP

1шт.

23

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW hex cap, 5/8-11 x 3-1/4

1шт.

24

425-1010

NUT,5/8"-11, G5

2шт.

25

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

26

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

2шт.

27

700711134

SCREW

hex flange, 3/8-16 x 1-3/4 GR. 8

2шт.

28

158758

SPACER

2шт.

29

700126495

CLAMP

2шт.

30

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

31

S95446

CLAMP,1 5/16", Insul, 1/2" Bolt

2шт.

32

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

straight (Includes: Ref. 3)

2шт.

33

700718237

MANIFOLD

VALVE ASSEMBLY flow control

1шт.

34

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

hex, 5/16-18 x 3-1/2

2шт.

35

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

36

232-5315

FLANGE NUT,Flg, 5/16"-18

hex flange top lock, 5/16-18 GR/G

2шт.

37

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

(Incl. Ref. 3)

2шт.

38

51200289

FITTING

CONNECTOR straight (Includes: Ref. 4)

1шт.

39

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Straight (Incl. Ref 5)

1шт.

40

8027427

GROMMET

1шт.

41

95-81051

WASHER,19.84mm ID x 31.75mm OD x 3.81mm Thk

BUSHING narrow rim machinery, 3/4 x 10 gauge

1шт.
