(08-040) - HYDRAULIC CYLINDER ASSEMBLY (CLUTCH) (2 INCH BORE X 4 INCH STROKE)

Запчасти Case IH RS561 (08-040) - HYDRAULIC CYLINDER ASSEMBLY (CLUTCH) (2 INCH BORE X 4 INCH STROKE) (07) - HYDRAULICS

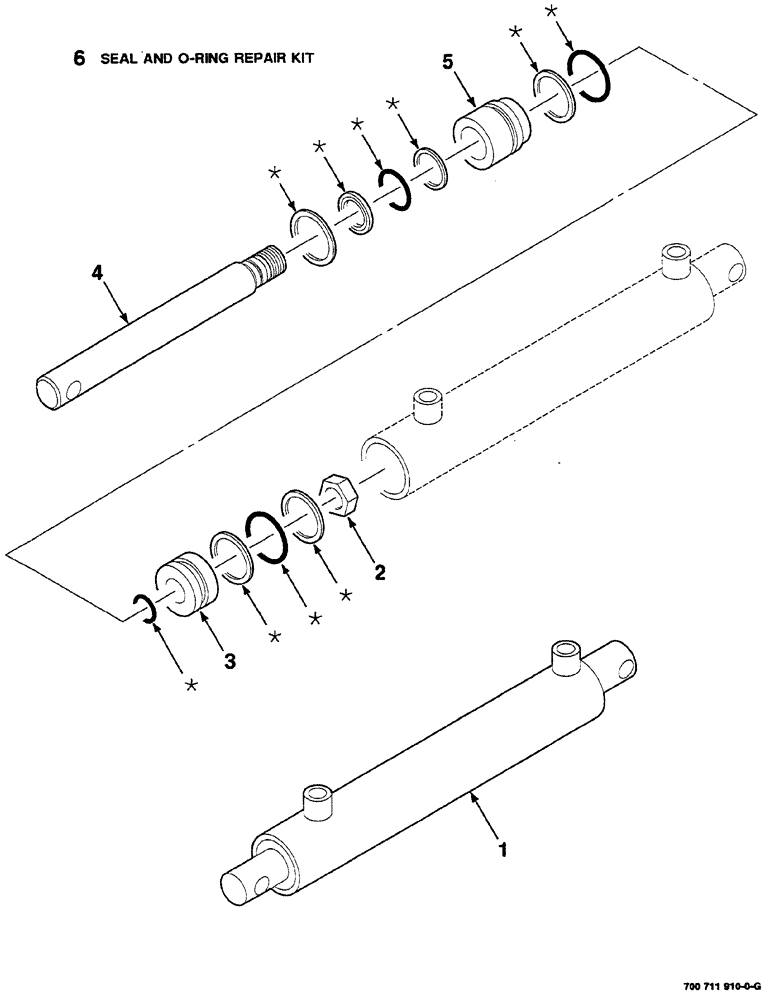

Схема запчастей Case IH RS561 - (08-040) - HYDRAULIC CYLINDER ASSEMBLY (CLUTCH) (2 INCH BORE X 4 INCH STROKE) (07) - HYDRAULICS
6
3
1
4
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700711910

CYLINDER ASSY.

HYDRAULIC COMPLETE (2 inch bore x 4 inch stroke)

1шт.

2

700707418

JAM NUT

hex jam, 7/8-14 UNF

1шт.

3

700707419

PISTON

1шт.

4

700711955

PISTON ROD

1шт.

5

700711112

GUIDE

ROD

1шт.

6

700711114

SEAL KIT

seal and O-ring repair, includes items in art marked with asterisk

1шт.
