(08-034) - HYDR. CYL. ASSY. (LOWER BALE TENSION) (2 INCH BORE X 16 INCH STROKE) (S.N. CFH0156400 AND LATER)

Запчасти Case IH RS561 (08-034) - HYDR. CYL. ASSY. (LOWER BALE TENSION) (2 INCH BORE X 16 INCH STROKE) (S.N. CFH0156400 AND LATER) (07) - HYDRAULICS

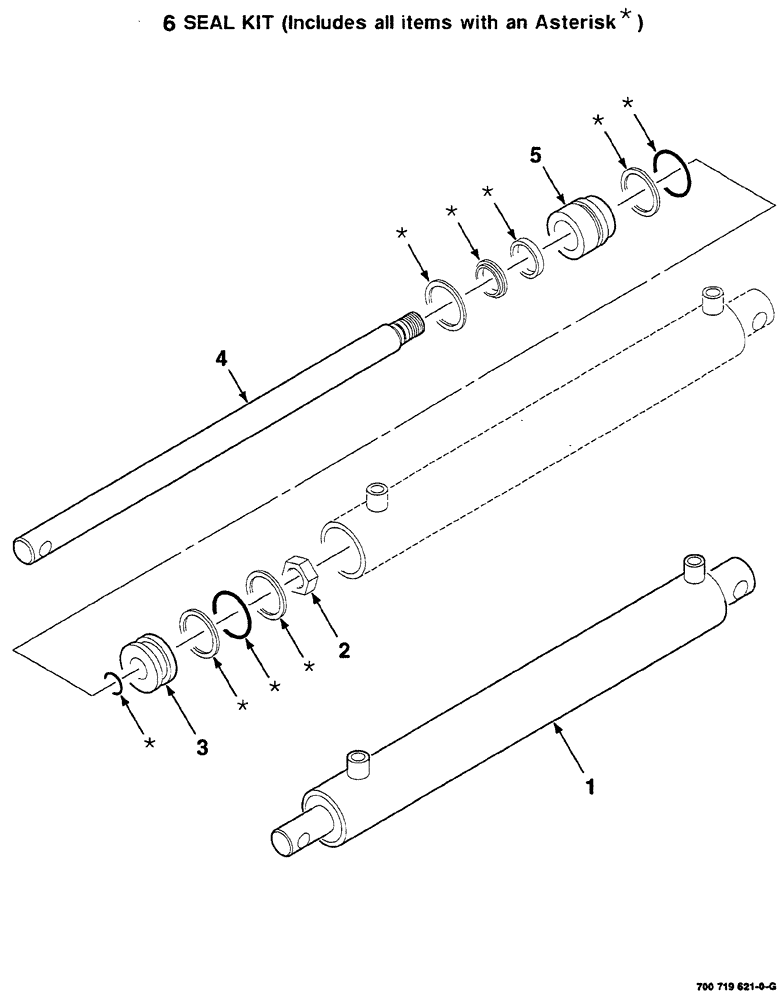

Схема запчастей Case IH RS561 - (08-034) - HYDR. CYL. ASSY. (LOWER BALE TENSION) (2 INCH BORE X 16 INCH STROKE) (S.N. CFH0156400 AND LATER) (07) - HYDRAULICS
6
4
2
1
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700719621

CYLINDER

HYDRAULIC COMPLETE (2 inch bore x 16 inch stroke)

1шт.

2

700707418

JAM NUT

hex jam, 7/8-14

1шт.

3

700707419

PISTON

1шт.

4

700708959

ROD

1шт.

5

700711112

GUIDE

ROD

1шт.

6

700711954

SEAL KIT

KIT and O-ring repair, includes items in art marked with asterisk

1шт.
