(08-032) - HYDR. CYL. ASSY. (UPPER BALE TENSION) (2 IN. BORE X 12 IN. STROKE) (S.N. CFH0156001 THRU CFH0156399)

Запчасти Case IH RS561 (08-032) - HYDR. CYL. ASSY. (UPPER BALE TENSION) (2 IN. BORE X 12 IN. STROKE) (S.N. CFH0156001 THRU CFH0156399) (07) - HYDRAULICS

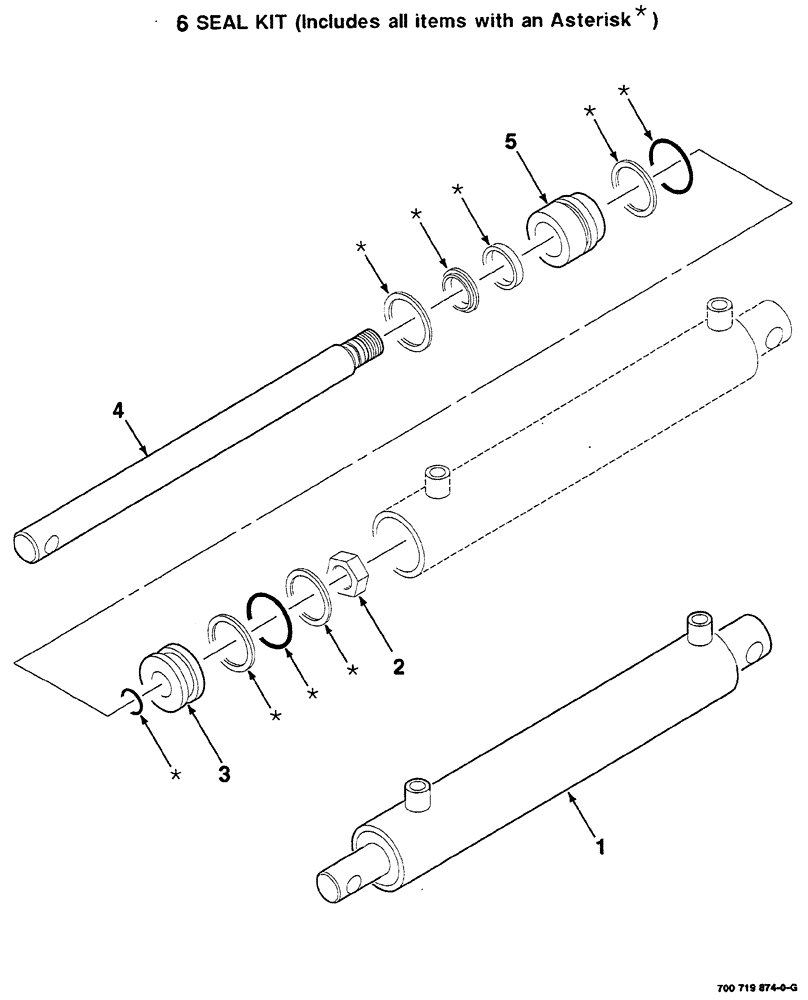

Схема запчастей Case IH RS561 - (08-032) - HYDR. CYL. ASSY. (UPPER BALE TENSION) (2 IN. BORE X 12 IN. STROKE) (S.N. CFH0156001 THRU CFH0156399) (07) - HYDRAULICS
1
4
2
3
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700719874

CYLINDER ASSY.

HYDRAULIC COMPLETE (2 inch bore x 12 inch stroke)

1шт.

2

700707418

JAM NUT

hex jam, 7/8-14

1шт.

3

700707419

PISTON

1шт.

4

700719664

PISTON ROD

1шт.

5

700711112

GUIDE

ROD

1шт.

6

700711954

SEAL KIT

KIT and O-ring repair, includes items in art marked with asterisk

1шт.

Выбрано товаров: 6
