(08-024) - HYDRAULIC CYLINDER ASM.-TAILGATE (WITH MESH WRAP) (2-1/2 INCH BORE X 24 INCH STROKE)

Запчасти Case IH RS561 (08-024) - HYDRAULIC CYLINDER ASM.-TAILGATE (WITH MESH WRAP) (2-1/2 INCH BORE X 24 INCH STROKE) (07) - HYDRAULICS

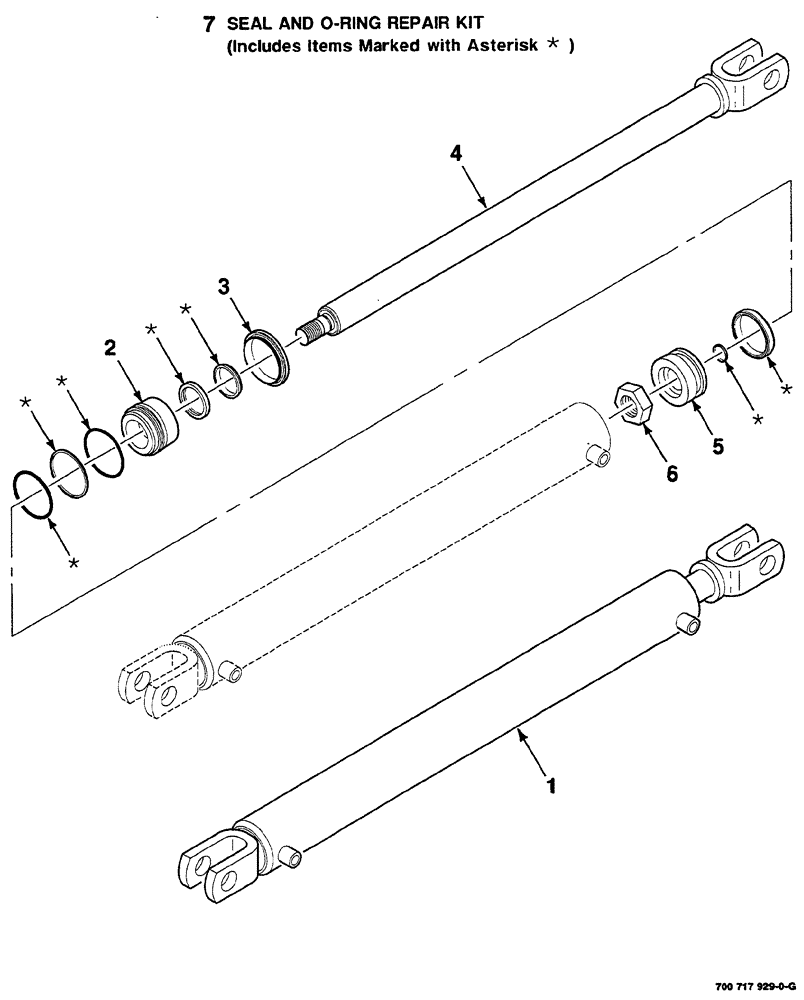

Схема запчастей Case IH RS561 - (08-024) - HYDRAULIC CYLINDER ASM.-TAILGATE (WITH MESH WRAP) (2-1/2 INCH BORE X 24 INCH STROKE) (07) - HYDRAULICS
7
3
2
4
5
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700717929

CYLINDER

HYDRAULIC ASM. COMPLETE (2-1/2 inch bore x 24 inch stroke)

1шт.

2

700718149

GUIDE

ROD

1шт.

3

700718150

NUT

spanner

1шт.

4

700718147

ROD

PISTON

1шт.

5

700710421

PISTON

1шт.

6

774315

NUT

hex top lock, 7/8-14 GR C

1шт.

7

700718146

KIT

seal and O-ring repair, includes items in art marked with asterisk.

1шт.
