(08-022) - HYDRAULIC CYLINDER ASM.-TAILGATE (WITHOUT MESH WRAP) (2 INCH BORE X 24 INCH STROKE)

Запчасти Case IH RS561 (08-022) - HYDRAULIC CYLINDER ASM.-TAILGATE (WITHOUT MESH WRAP) (2 INCH BORE X 24 INCH STROKE) (07) - HYDRAULICS

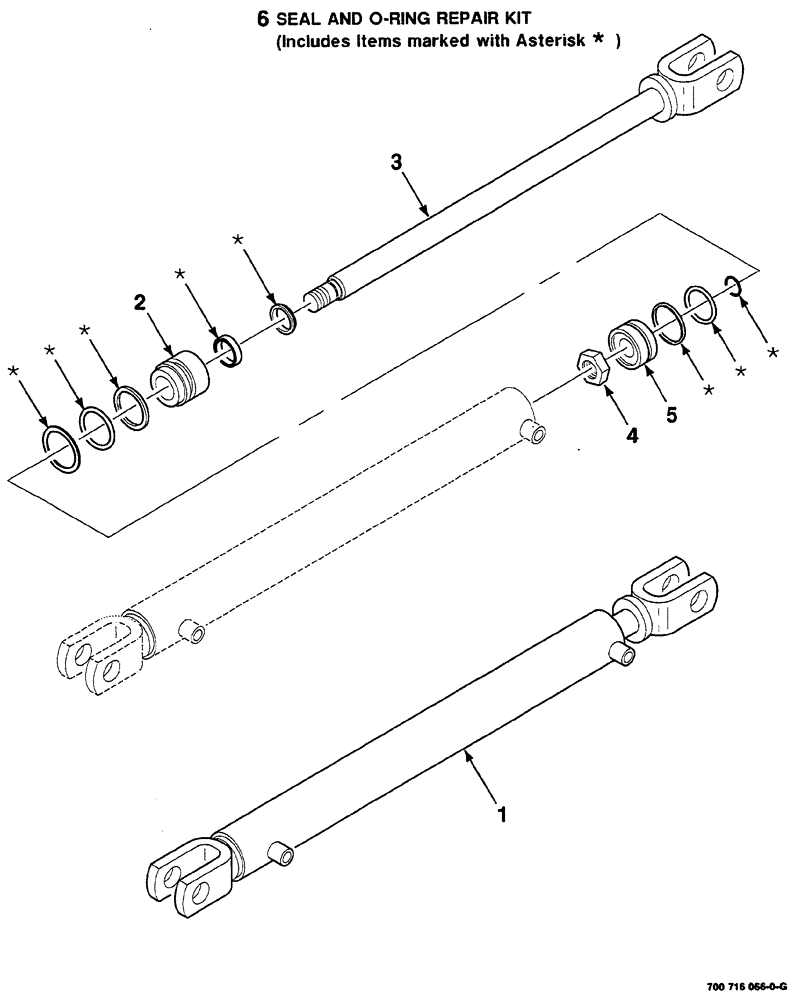

Схема запчастей Case IH RS561 - (08-022) - HYDRAULIC CYLINDER ASM.-TAILGATE (WITHOUT MESH WRAP) (2 INCH BORE X 24 INCH STROKE) (07) - HYDRAULICS
6
4
5
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700716066

CYLINDER

HYDRAULIC ASM. COMPLETE (2 inch bore x 24 inch stroke)

1шт.

2

700712477

GUIDE

ROD

1шт.

3

700718145

ROD

PISTON

1шт.

4

700707418

JAM NUT

UNF hex jam, 7/8-14

1шт.

5

700707419

PISTON

1шт.

6

700718144

KIT

seal and O-ring repair, includes items in art marked with asterisk.

1шт.
