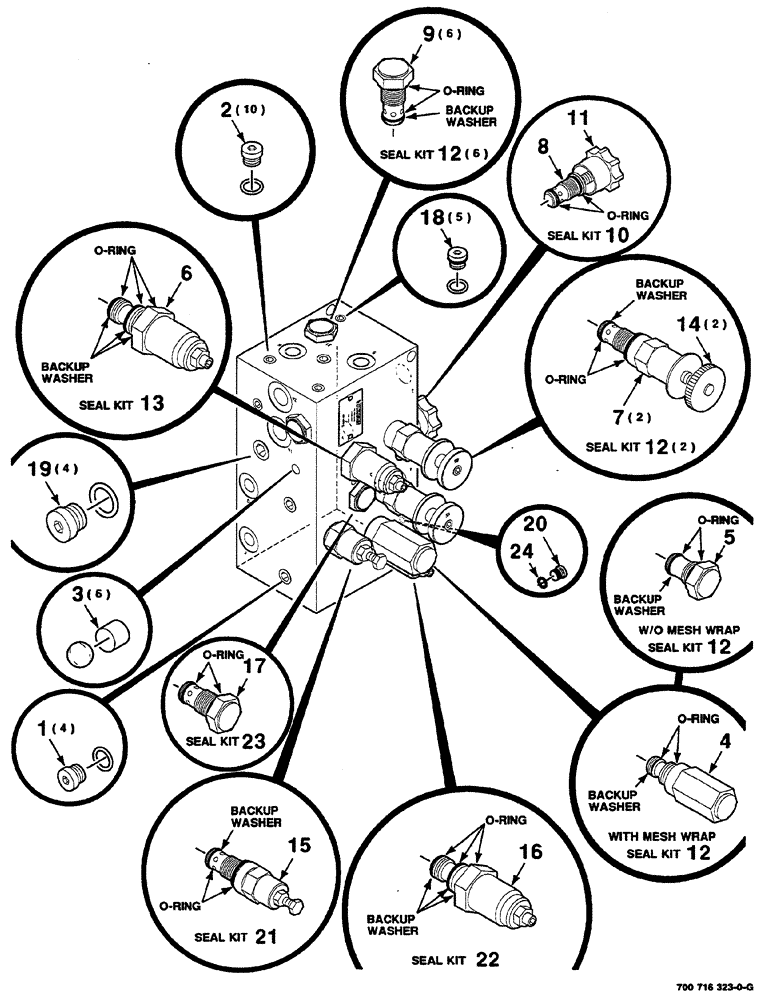

Запчасти Case IH RS561 (08-020) - HYDRAULIC CONTROL VALVE ASSEMBLY (BALE TENSION) (07) - HYDRAULICS

700716323

VALVE

HYDRAULIC ASSEMBLY COMPLETE

1шт.

1

700707840

PLUG

SAE 9/16-18 (includes O-ring)

4шт.

2

700715661

PLUG

SAE 1/2-20

10шт.

3

700718282

PLUG

expander

6шт.

4

700717962

VALVE

relief, 3000 PSI (with mesh wrap)

1шт.

5

700706602

PLUG

cavity, C-10-2 (Includes: Ref. 12) (W/O mesh wrap)

1шт.

6

700718278

VALVE

counterbalance

1шт.

7

700718281

VALVE

relief, 2650 PSI

2шт.

8

700715658

VALVE

needle

1шт.

9

700715651

VALVE

check

6шт.

10

700715663

KIT

seal

1шт.

11

700715674

KNOB

KIT

1шт.

12

149942C1

SEAL KIT

10шт.

Part of Ref. 5, part number 700706602

1шт.

13

700718410

KIT

seal

1шт.

14

700715666

KNOB

KIT

2шт.

15

700718279

VALVE

kick down sequence

1шт.

16

700719875

VALVE

counterbalance

1шт.

17

700717726

VALVE

piloted check

1шт.

18

700707835

PLUG

SAE 7/16-20 (includes O-ring)

5шт.

19

700711505

PLUG

SAE 3/4-16

4шт.

20

218-5151

PLUG,Hex Hd, 5/16"-24 ORB

SAE 5/16-24 (Includes: Ref. 24)

1шт.

21

700717670

KIT

seal

1шт.

22

700715665

KIT

seal

1шт.

23

700718409

KIT

seal

1шт.

24

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1шт.

Part of Ref. 20, part number 218-5151

1шт.
