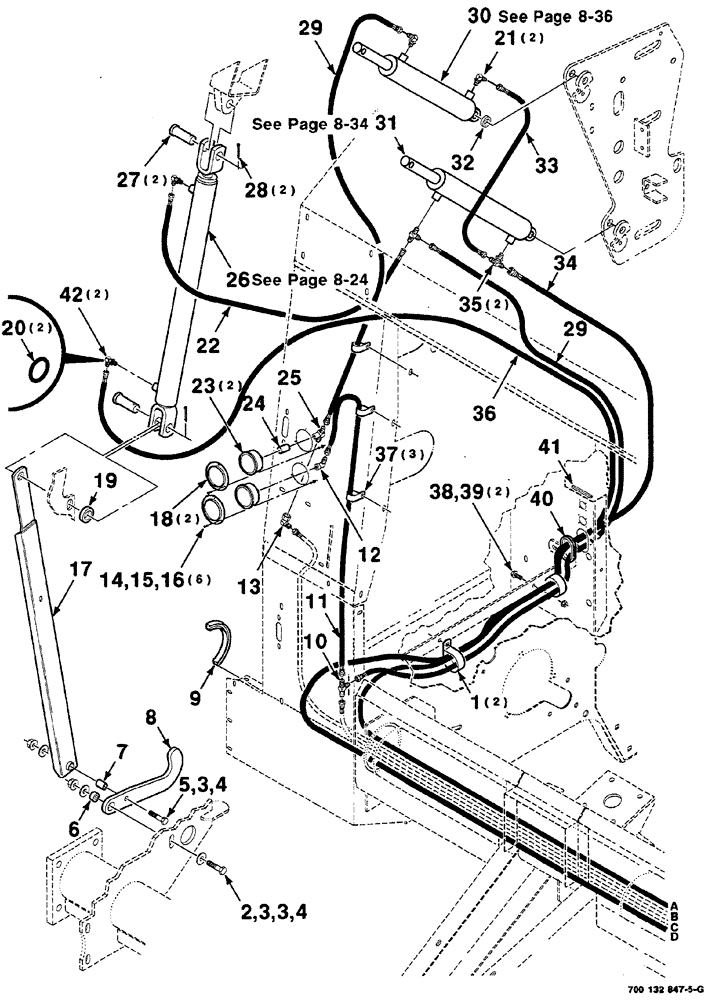

Запчасти Case IH RS561 (08-016) - HYDRAULIC CONTROL ASSEMBLY-RIGHT (WITH MESH WRAP) (S.N. CFH0156400 AND LATER) (07) - HYDRAULICS

1

7041015

CLAMP

2шт.

2

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

3

700711557

WASHER

hardened wide plain, 1/2

3шт.

4

231-5348

FLANGE NUT,Flg, 1/2"-13

hex flange top lock, 1/2-13 GR/G

2шт.

5

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

6

700132512

BUSHING

1шт.

7

700132513

BUSHING

1шт.

8

700132511

LATCH

1шт.

9

700726027

STRIP

TRIM

1шт.

10

218-593

TEE,9/16"-18, 37 Degree

union

1шт.

11

700718469

HYDRAULIC HOSE,0.25" ID x 55.12", SAE J516, SAE J343

hydraulic

1шт.

12

218-513

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, Fem NPTF

1шт.

13

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

1шт.

14

440-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

GR. 60M

6шт.

15

492-11006

LOCK WASHER,#6

6шт.

16

225-14106

NUT,#6-32

6шт.

17

700147502

LINK

STRAP WA

1шт.

18

700709292

FLANGE

gauge, clamp

2шт.

19

700120629

SPACER

1шт.

20

738468

O-RING

2шт.

Part of Ref. 21, 35, and 42, part numbers 218-5105, 218-5243, and 218-5106

1шт.

21

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

(Includes Ref. 20)

2шт.

22

700716085

HOSE

hydraulic

1шт.

23

700709290

GAUGE

pressure

2шт.

24

8047003

COUPLING

hydraulic

1шт.

25

218-553

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Br

TEE male run

1шт.

26

700717929

CYLINDER

ASSEMBLY hydraulic

1шт.

27

700710292

PIN

clevis, special

2шт.

28

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

29

700719683

HYDRAULIC HOSE,0.38" ID x 44.29", SAE 100R17, SAE J517

hydraulic

2шт.

30

700714707

CYLINDER

ASSEMBLY hydraulic

1шт.

31

700719621

CYLINDER

ASSEMBLY hydraulic

1шт.

32

700135550

SPACER

1шт.

33

8042715

HYDRAULIC HOSE,9.65 mm ID x 787.00 mm, SAE 100R1,SAE J517,SAE J343,SAE J516

1шт.

34

700719681

HYDRAULIC HOSE,0.38" ID x 177.17", SAE 100R17, SAE J517

hydraulic

1шт.

35

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Male (Includes: Ref. 20)

2шт.

36

700716086

HOSE

hydraulic

1шт.

37

515-23254

CLAMP,1", Insul, 3/8" Bolt

Line

3шт.

38

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

39

231-5146

FLANGE NUT,3/8"-16

2шт.

40

8027427

GROMMET

1шт.

41

700153662

GROMMET

1шт.

42

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

(Includes Ref. 20)

2шт.
