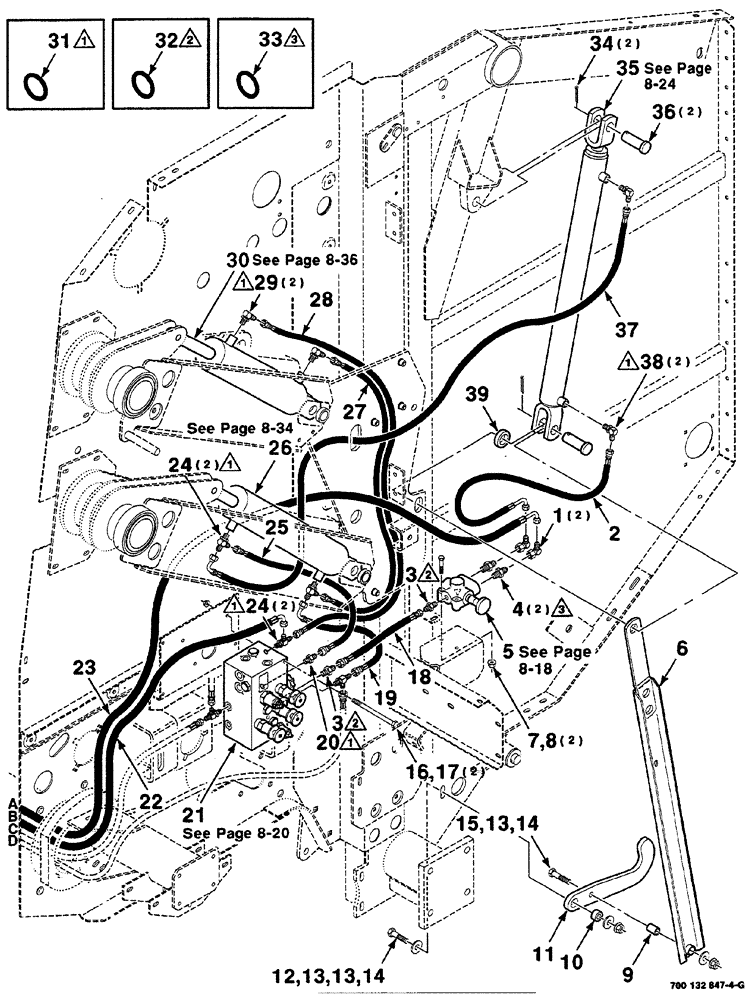

Запчасти Case IH RS561 (08-012) - HYDRAULIC CONTROL ASSEMBLY-LEFT (WITH MESH WRAP) (S.N. CFH0156400 AND LATER) (07) - HYDRAULICS

1

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

2шт.

2

700716081

HOSE

hydraulic

1шт.

3

9967312

CONNECTOR straight (Includes: Ref. 32)

2шт.

4

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Straight (Incl. Ref 33)

2шт.

5

700717995

VALVE

ASSEMBLY shutoff

1шт.

6

700147502

LINK

STRAP WA

1шт.

7

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

8

232-5315

FLANGE NUT,Flg, 5/16"-18

hex flange top lock, 5/16-18 GR/G

2шт.

9

700132513

BUSHING

1шт.

10

700132512

BUSHING

1шт.

11

700132511

LATCH

1шт.

12

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

13

700711557

WASHER

hardened wide plain, 1/2

3шт.

14

231-5348

FLANGE NUT,Flg, 1/2"-13

hex flange top lock, 1/2-13 GR/G

2шт.

15

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

16

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

SCREW hex cap, 3/8-16 x 4-1/2

2шт.

17

231-5146

FLANGE NUT,3/8"-16

2шт.

18

700716083

HYDRAULIC HOSE,0.63" ID x 29.53", SAE 100R2 Type AT, SAE J517, SAE J516, SAE J343

hydraulic

1шт.

19

700716073

HOSE

hydraulic

1шт.

20

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

(Incl. Ref. 31)

1шт.

21

700716323

VALVE

ASSEMBLY bale tension

1шт.

22

700719685

HOSE

hydraulic

1шт.

23

700716086

HOSE

hydraulic

1шт.

24

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Straight run (Includes: Ref. 31)

4шт.

25

700716082

HYDRAULIC HOSE,0.38" ID x 33.47", SAE 100R17, SAE J517, SAE J516, SAE J343

hydraulic

1шт.

26

700719621

CYLINDER

ASSEMBLY hydraulic

1шт.

27

8042715

HYDRAULIC HOSE,9.65 mm ID x 787.00 mm, SAE 100R1,SAE J517,SAE J343,SAE J516

1шт.

28

700714814

HYDRAULIC HOSE,0.25" ID x 61.02", SAE J517, SAE J516, SAE J343

hydraulic

1шт.

29

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

(Includes Ref. 31)

2шт.

30

700714707

CYLINDER

ASSEMBLY hydraulic

1шт.

31

738468

O-RING

1шт.

Part of Ref. 20 24, 29, and 38, part numbers 218-5057, 218-5243, 218-5105, and 218-5106

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of Ref. 3, part number 846717

1шт.

33

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of Ref. 4, part number 218-5059

1шт.

34

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

35

700717929

CYLINDER

ASSEMBLY hydraulic

1шт.

34

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

36

700710292

PIN

clevis, special

2шт.

37

700716085

HOSE

hydraulic

1шт.

38

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

(Includes Ref. 31)

2шт.

39

700120629

SPACER

1шт.

39

700120629

SPACER

1шт.
