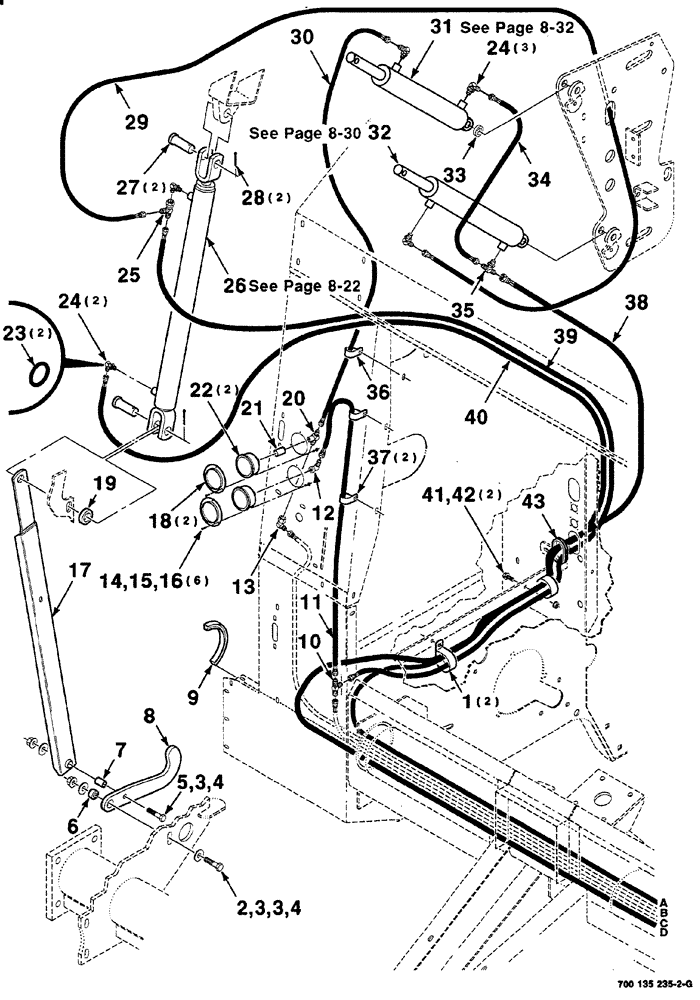

Запчасти Case IH RS561 (08-006) - HYDRAULIC CONTROL ASSEMBLY-RIGHT (WITHOUT MESH WRAP) (S.N. CFH0156001 THRU CFH0156399) (07) - HYDRAULICS

1

7041015

CLAMP

2шт.

2

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

3

700711557

WASHER

hardened wide plain, 1/2

3шт.

4

231-5348

FLANGE NUT,Flg, 1/2"-13

GR/G

2шт.

5

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

6

700132512

BUSHING

1шт.

7

700132513

BUSHING

1шт.

8

700132511

LATCH

1шт.

9

700716877

ORNAMENTAL STRIP

TRIM

1шт.

10

218-593

TEE,9/16"-18, 37 Degree

union

1шт.

11

700718469

HYDRAULIC HOSE,0.25" ID x 55.12", SAE J516, SAE J343

hydraulic

1шт.

12

218-513

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, Fem NPTF

1шт.

13

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

1шт.

14

440-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

GR. 60M

6шт.

15

492-11006

LOCK WASHER,#6

6шт.

16

225-14106

NUT,#6-32

6шт.

17

700147502

LINK

STRAP WA

1шт.

18

700709292

FLANGE

gauge, clamp

2шт.

19

700120629

SPACER

1шт.

20

218-553

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Br

TEE male

1шт.

21

8047003

COUPLING

hydraulic

1шт.

22

700709290

GAUGE

pressure

2шт.

23

738468

O-RING

2шт.

Part of Ref. 24 & 35, part numbers 218-5105, and 218-5182

1шт.

24

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

(Includes Ref. 23)

5шт.

25

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

Adapter

1шт.

26

700716066

CYLINDER

ASSEMBLY hydraulic

1шт.

27

700710292

PIN

clevis, special

2шт.

28

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

29

700719684

HYDRAULIC HOSE,0.38" ID x 40.35", SAE 100R17, SAE J517

hydraulic

1шт.

30

700719683

HYDRAULIC HOSE,0.38" ID x 44.29", SAE 100R17, SAE J517

hydraulic

1шт.

31

700719874

CYLINDER ASSY.

hydraulic

1шт.

32

700719588

CYLINDER ASSY.

hydraulic

1шт.

33

700135550

SPACER

1шт.

34

700718026

HOSE

hydraulic

1шт.

35

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

male (Includes: Ref. 23)

1шт.

36

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

37

515-23254

CLAMP,1", Insul, 3/8" Bolt

Line

2шт.

38

700719681

HYDRAULIC HOSE,0.38" ID x 177.17", SAE 100R17, SAE J517

hydraulic

1шт.

39

700716462

HYDRAULIC HOSE,0.38" ID x 85.63", SAE J516, SAE J343, SAE 100R17

hydraulic

1шт.

40

700716086

HOSE

hydraulic

1шт.

41

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

42

231-5146

FLANGE NUT,3/8"-16

2шт.

43

8027427

GROMMET

1шт.
