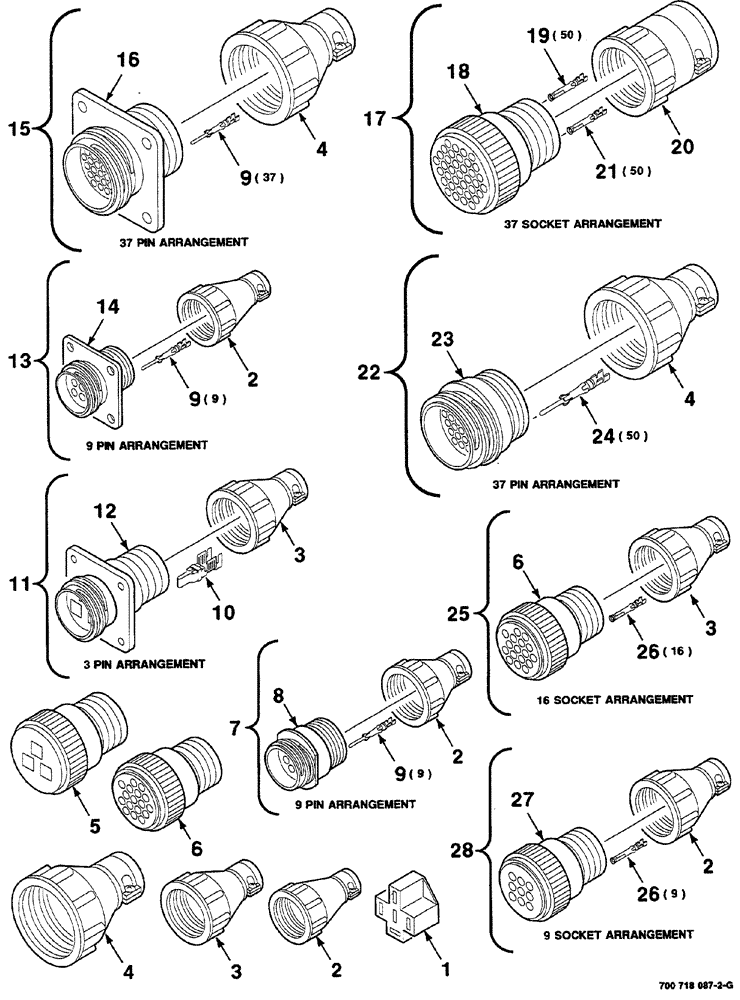

Запчасти Case IH RS561 (04-030) - ELECTRICAL HARNESS SERVICE PARTS (06) - ELECTRICAL

1

700718615

CONNECTOR, ELEC

CONNECTOR 4 socket, female

1шт.

2

700709708

CLAMP

CABLE shell size 13

1шт.

3

225153C1

CONTACT HOUSING

CABLE clamp, shell size 17

1шт.

4

245491C1

ELEC CONNECTOR

CABLE clamp, standard, shell size 23

1шт.

5

225165C1

ELEC CONNECTOR

3 socket, female

1шт.

6

225171C1

ELEC CONNECTOR,Female, 16 Pin

plug, female, (16 socket arrangement)

1шт.

7

700718618

KIT

harness repair, male (9 pin) (Includes: Ref. 2, 8 and 9)

1шт.

8

700708079

WIRE CONNECTOR

RECEPTACLE pin, male (9 pin arrangement)

1шт.

9

700708757

ELEC. TERMINAL PIN,18 - 16 SAE

type 3, male (16-18 gauge)

1шт.

10

700709767

CONTACT

male, type XII

1шт.

11

700718610

KIT

harness repair, male (3 pin) (Includes: Ref. 3, 10 and 12)

1шт.

12

225164C1

ELEC CONNECTOR

RECEPTACLE square flange, male, (3 pin arrangement)

1шт.

13

700718612

KIT

harness repair, male (9 pin) (Includes: Ref. 2, 9 and 14)

1шт.

14

700707758

CONTAINER

RECEPTACLE square flange, male, (13-9 arrangement with seal)

1шт.

15

700718609

KIT

harness repair, male (37 pin) (Includes: Ref. 4, 9 and 16)

1шт.

16

700718583

CONNECTOR, ELEC

CONNECTOR RECEPTACLE square flange, male, (37 pin arrangement)

1шт.

17

700707004

REPAIR KIT

harness repair, 37 socket, female (Includes: Ref. 18, 19, 20 and 21)

1шт.

18

245490C1

ELEC CONNECTOR,Female, 37 Pin

plug, female, (37 socket arrangement)

1шт.

19

700718608

TERMINAL

SOCKET type 3, female (20-24 gauge)

1шт.

20

131499C1

CLAMP

CABLE, shell size 23

1шт.

21

700718607

TERMINAL

SOCKET type 3, female (14-18 gauge)

1шт.

22

700707003

REPAIR KIT

harness repair, male (37 pin) (Includes: Ref. 4, 23 and 24)

1шт.

23

225138C1

CONNECTOR, ELEC

CONNECTOR male, 37 pin arrangement

1шт.

24

700718605

TERMINAL

PIN type 3, (20-24 gauge)

1шт.

25

700718611

KIT

harness repair, female (16 socket) (Includes: Ref. 3, 6 and 26)

1шт.

26

700708758

TERMINAL

type 3, female, (16-18 gauge)

1шт.

27

60-6127T2

CONNECTION

plug, female, (9 socket arrangement)

1шт.

28

700718683

KIT

harness repair, female (9 socket) (Includes: Ref. 3, 26 and 27)

1шт.
