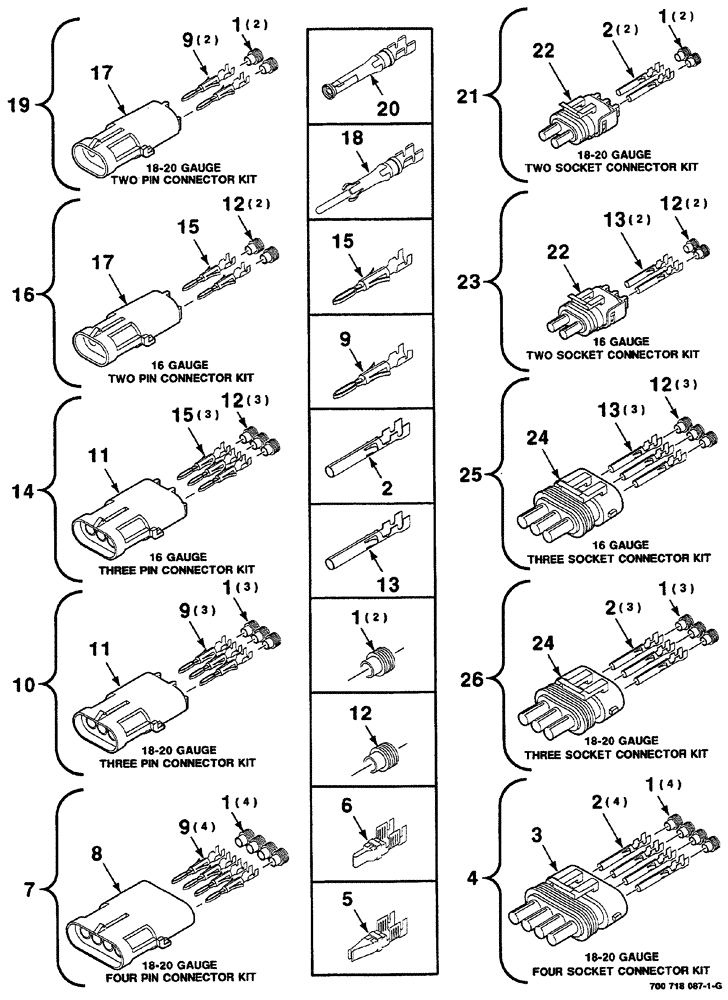

Запчасти Case IH RS561 (04-028) - ELECTRICAL HARNESS SERVICE PARTS (06) - ELECTRICAL

1

700706400

PLUG

(18-20 gauge)

1шт.

2

700708760

ELEC. TERMINAL PIN,18 - 20 SAE

SOCKET female (18-20 gauge)

1шт.

3

700708963

WIRE CONNECTOR

tower, 4 socket, female

1шт.

4

700707002

REPAIR KIT

KIT harness, 4 socket, female, (Includes: Ref. 1, 2 and 3)

1шт.

5

700709706

TERMINAL

female, type XII

1шт.

6

700709767

CONTACT

male, type XII

1шт.

7

700709354

REPAIR KIT

KIT harness repair, 4 pin, shroud, male (Includes: Ref. 1, 8 and 9)

1шт.

8

700708964

WIRE CONNECTOR

shroud, 4 pin, male

1шт.

9

700706401

TERMINAL

PIN male (18-20 gauge)

1шт.

10

700718599

KIT

harness repair, shroud, 3 pin, male (Includes: Ref. 1, 9 and 11)

1шт.

11

700706413

ELEC CONNECTOR

shroud, 3 pin, male

1шт.

12

225125C1

SEAL

SEAL (16 gauge)

1шт.

13

700718576

TERMINAL CONNECTOR

SOCKET female (16 gauge)

1шт.

14

700718531

KIT

harness repair, shroud, 3 pin, male, 16 gauge (Includes: Ref. 11, 12 and 15)

1шт.

15

700718530

TERMINAL CONNECTOR

PIN male (16 gauge)

1шт.

16

700718588

KIT

harness repair, 2 pin, male, 16 gauge (Includes: Ref. 12, 15 and 17)

1шт.

17

700706399

ELEC CONNECTOR,14 - 20 SAE

shroud, 2 pin, male

1шт.

18

700708757

ELEC. TERMINAL PIN,18 - 16 SAE

type 3, male (16-18 gauge)

1шт.

19

700708753

REPAIR KIT

harness repair, 2 pin, male (Includes: Ref. 1, 9 and 17)

1шт.

20

700708758

TERMINAL

type 3, female, (16-18 gauge)

1шт.

21

700706999

REPAIR KIT

KIT harness, 2 socket, female, 18-20 gauge (Includes: Ref. 1, 2 and 22)

1шт.

22

245482C1

ELEC CONNECTOR,2 Pin

tower, 2 socket, female

1шт.

23

700718590

KIT

harness repair, 2 socket, female, 16 gauge (Includes: Ref. 12, 13 and 22)

1шт.

24

245484C1

ELEC CONNECTOR,3 Pin

tower, 3 socket, female

1шт.

25

700718582

KIT

harness repair, 3 socket, female 16 gauge (Includes: Ref. 12, 13 and 24)

1шт.

26

700707001

REPAIR KIT

harness repair, 3 socket, female (Includes: Ref. 1, 2 and 24)

1шт.
