(04-026) - ELECTRICAL CONTROL BOX ASSEMBLY (WITH MESH WRAP)

Запчасти Case IH RS561 (04-026) - ELECTRICAL CONTROL BOX ASSEMBLY (WITH MESH WRAP) (06) - ELECTRICAL

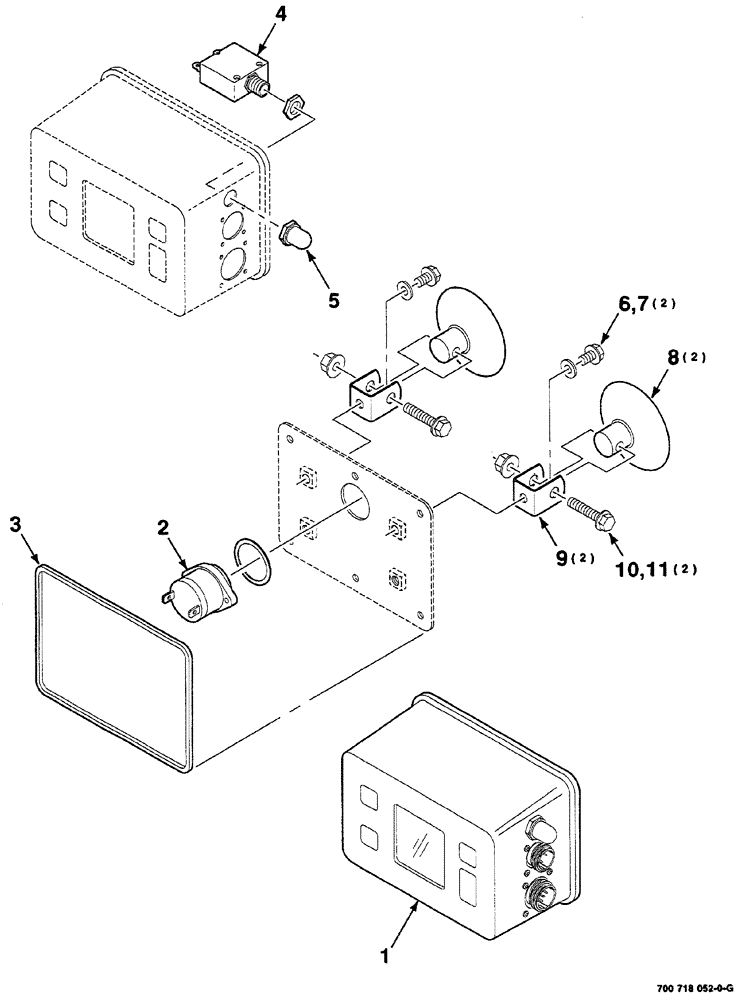

Схема запчастей Case IH RS561 - (04-026) - ELECTRICAL CONTROL BOX ASSEMBLY (WITH MESH WRAP) (06) - ELECTRICAL
10
6
4
11
1
7
8
3
5
2
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700718052

CONTROL

BOX ASSEMBLY COMPLETE (with mesh wrap)

1шт.

2

700719004

ALARM

beeper

1шт.

3

700719007

GASKET

1шт.

4

700719006

BREAKER

circuit

1шт.

5

700716260

COVER

fuse

1шт.

6

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

7

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

8

700714802

CUP

suction

2шт.

9

700132408

MOUNTING PARTS

2шт.

10

163-56

SCREW,Hex Wshr Hd, 5/16" - 18 x 1 1/2", Gr 5

hex washer head machine, 5/16-18 x 1-1/2

2шт.

11

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 hex flange top lock, GR/G

2шт.
