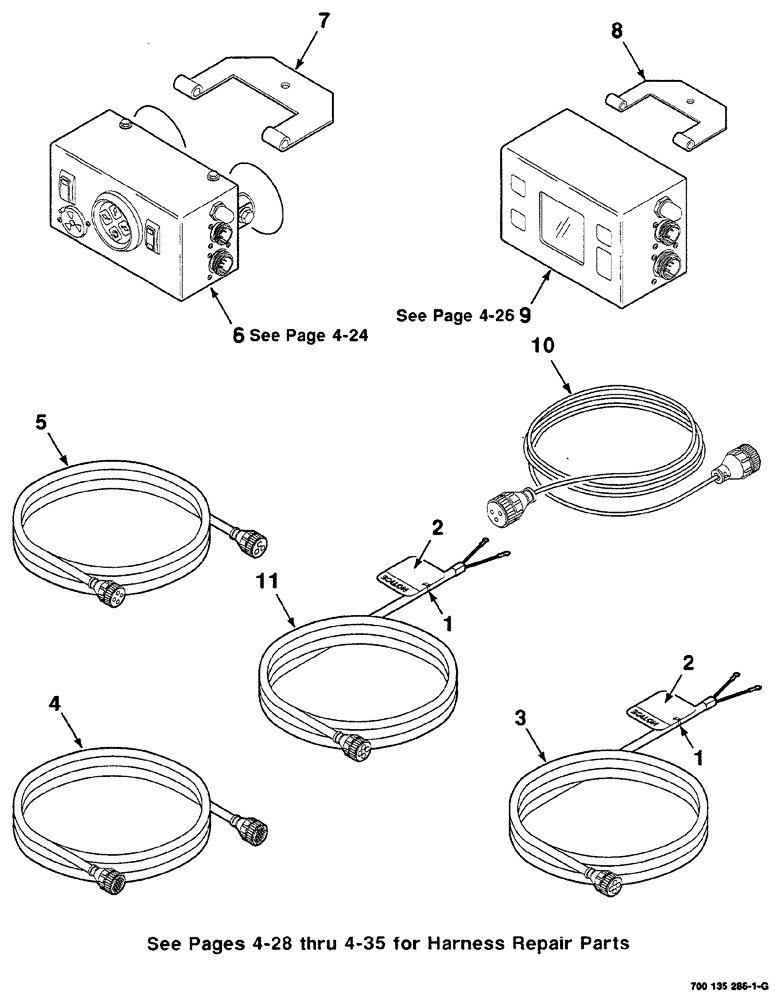

Запчасти Case IH RS561 (04-022) - ELECTRICAL CONTROL BOXES AND CABLE ASSEMBLIES (06) - ELECTRICAL

1

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

2

700707683

DECAL

notice, 12 volt

2шт.

3

700717795

HARNESS

CABLE ASSEMBLY

1шт.

4

700715692

HARNESS

control (without mesh wrap)

1шт.

4

700717507

HARNESS

control (with mesh wrap)

1шт.

5

700717823

CABLE

ASSEMBLY

1шт.

6

700716953

CASE

CONTROL BOX ASSEMBLY COMPLETE (without mesh wrap)

1шт.

7

700151501

SUPPORT

BRACKET mounting, control box (without mesh wrap)

1шт.

8

700151500

SUPPORT

BRACKET mounting, control box (with mesh wrap)

1шт.

9

700718052

CONTROL

BOX ASSEMBLY COMPLETE (with mesh wrap)

1шт.

10

700718048

CABLE ASSY.

(cable for imported tractors only)

1шт.

11

700707598

WIRE HARNESS

ASSEMBLY

1шт.
