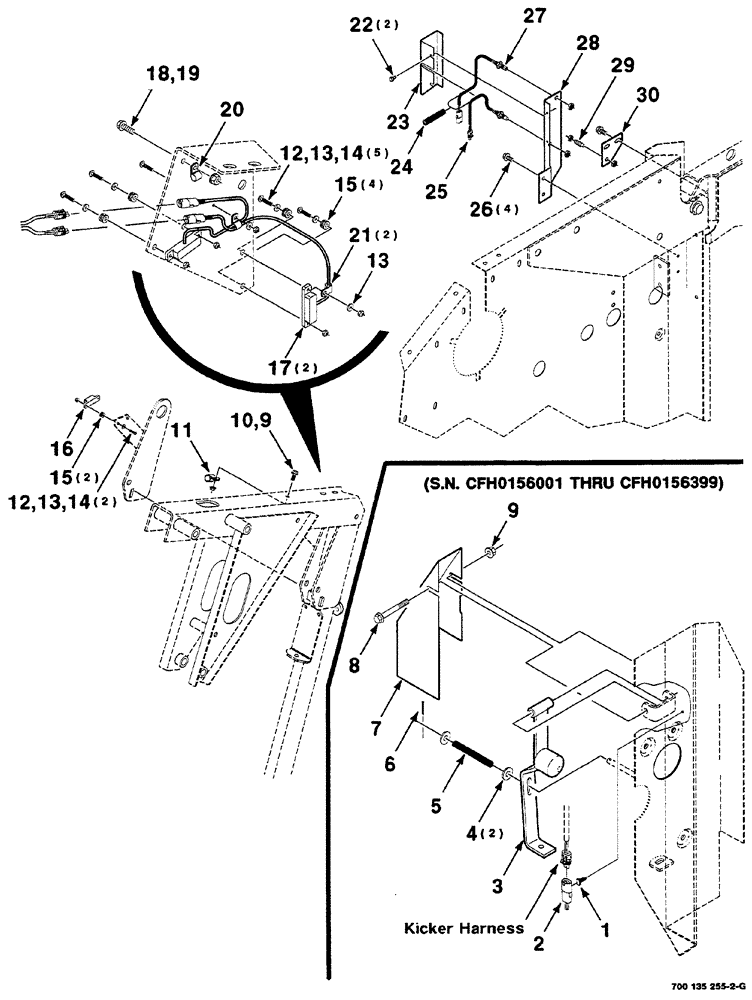

Запчасти Case IH RS561 (04-016) - ELECTRICAL ASSEMBLY (KICKER) (06) - ELECTRICAL

1

700718506

CLIP

plastic, barbed

1шт.

2

700716454

PLUG

JUMPER

1шт.

3

700135980

SUPPORT

WA

1шт.

4

496-81010

WASHER

hardened wide plain, 3/8

2шт.

5

700707978

SPRING

compression

1шт.

6

432-816

COTTER PIN,1/8" x 1"

1шт.

7

700150917

SHIELD

WA

1шт.

8

700716200

BOLT

SCREW hex flange, 3/8-16 x 3

1шт.

9

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

2шт.

10

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

11

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Line

1шт.

12

700710188

SCREW

cross recess pan head machine, #6-32 x 3/4 (stainless)

7шт.

13

700710187

WASHER

wide plain, #6 (stainless)

8шт.

14

700710189

LOCK NUT

light hex stop, #6-32 (stainless)

7шт.

15

700710199

GROMMET

6шт.

16

700709996

SWITCH

ACTUATOR

1шт.

17

700710208

ROTARY SWITCH

(N.O.)

2шт.

18

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

hex washer head machine, 1/4-20 x 3/4

1шт.

19

1703354

NUT

hex flange top lock, 1/4-20 GR/G

1шт.

20

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

21

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

Line

2шт.

22

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

23

700150915

SHIELD

1шт.

24

702400102

CONDUIT

split

1шт.

25

700718012

SWITCH

ASSEMBLY (NC)

1шт.

26

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

hex washer head thread cutting tapping, 3/8-16 x 3/4

4шт.

27

700119161

SWITCH

ASSEMBLY (NO)

1шт.

28

700150916

MOUNTING PARTS

SWITCH

1шт.

29

700710211

ACTUATOR

ACTUATOR

1шт.

30

700135943

MOUNTING PARTS

ACTUATOR

1шт.
