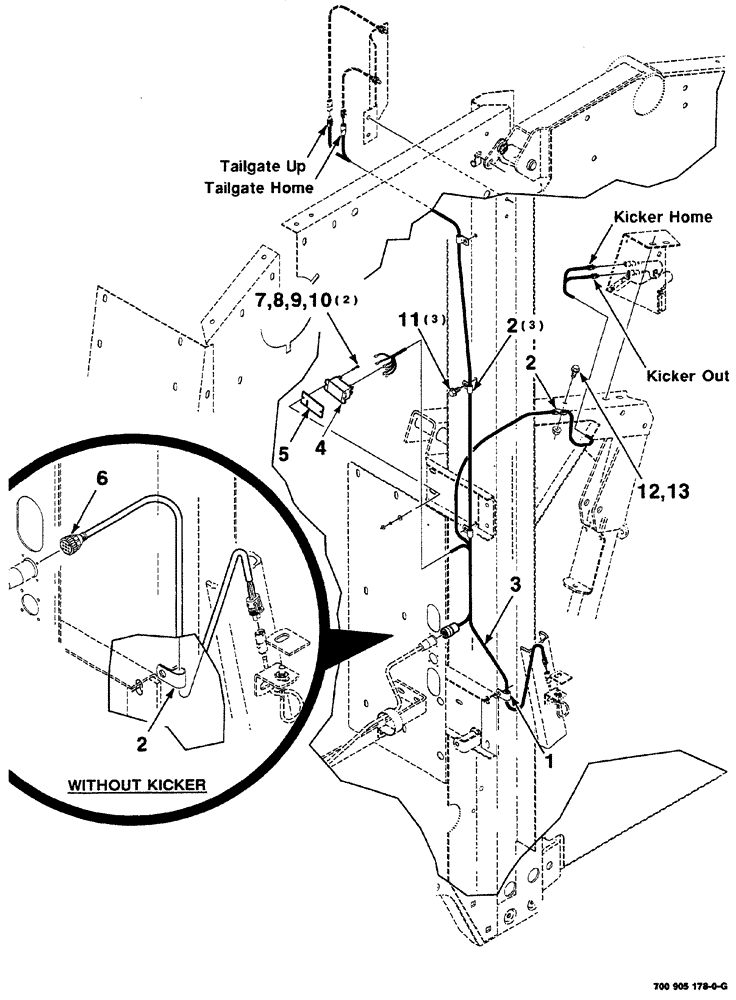

Запчасти Case IH RS561 (04-014) - ELECTRICAL ASSEMBLY (KICKER CONTROL) (06) - ELECTRICAL

1

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line

1шт.

2

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Line

5шт.

3

700716058

HARNESS

wire, kicker (without mesh wrap)

1шт.

3

700718006

HARNESS

wire, kicker (with mesh wrap)

1шт.

4

700716828

RELAY

electrical

1шт.

5

700718448

GASKET

relay

1шт.

6

700716059

CABLE

electric (without kicker)

1шт.

7

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

2шт.

8

495-21019

WASHER,#8

2шт.

9

492-11008

LOCK WASHER,#8

2шт.

10

225-14108

NUT,#8-32

hex, GR. 2 #8-32

2шт.

11

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

hex washer head thread cutting tapping, 3/8-16 x 3/4

3шт.

12

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

13

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

1шт.
