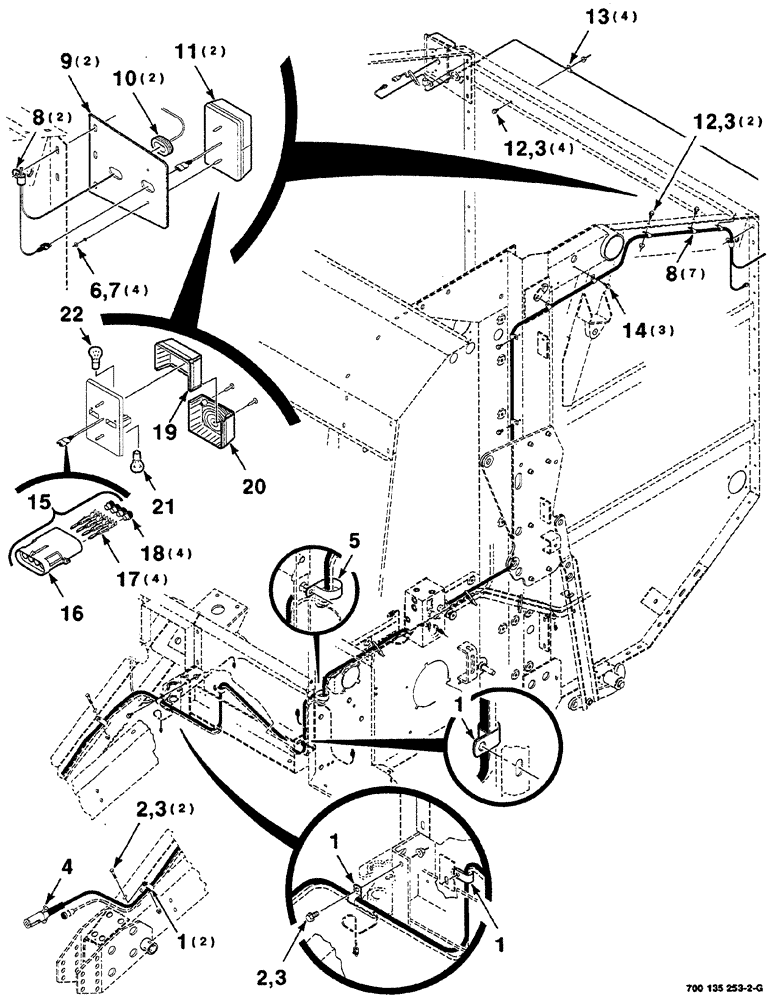

Запчасти Case IH RS561 (04-012) - ELECTRICAL ASSEMBLY (TAILLIGHTS) (06) - ELECTRICAL

1

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

5шт.

2

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

9шт.

4

700718047

HARNESS

tail light

1шт.

5

7041015

CLAMP

1шт.

6

492-11010

LOCK WASHER,#10

4шт.

7

825-1405

NUT,M5, Cl 8

4шт.

8

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

9шт.

9

700135935

SUPPORT

BRACKET-light

2шт.

10

700707095

GROMMET

2шт.

11

700716461

TAIL LAMP

combination

2шт.

12

409-7612

BOLT,3/8"-16 x 1.09" OAL

6шт.

13

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

4шт.

14

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

hex washer head thread cutting tapping, 3/8-16 x 3/4

3шт.

15

700709354

REPAIR KIT

KIT-repair, harness (Includes: Ref. 16, 17 and 18)

1шт.

16

700708964

WIRE CONNECTOR

shroud, 4 pin, male

1шт.

Part of KIT, part number 700709354

1шт.

17

700706401

TERMINAL

PIN-male (18-20 gauge)

4шт.

Part of KIT, part number 700709354

1шт.

18

700706400

PLUG

(18-20 gauge)

4шт.

Part of KIT, part number 700709354

1шт.

19

700717417

LENS

amber

1шт.

20

700717386

LENS

red

1шт.

21

700717381

BULB

E 12V

1шт.

22

700717385

BULB

12V

1шт.
